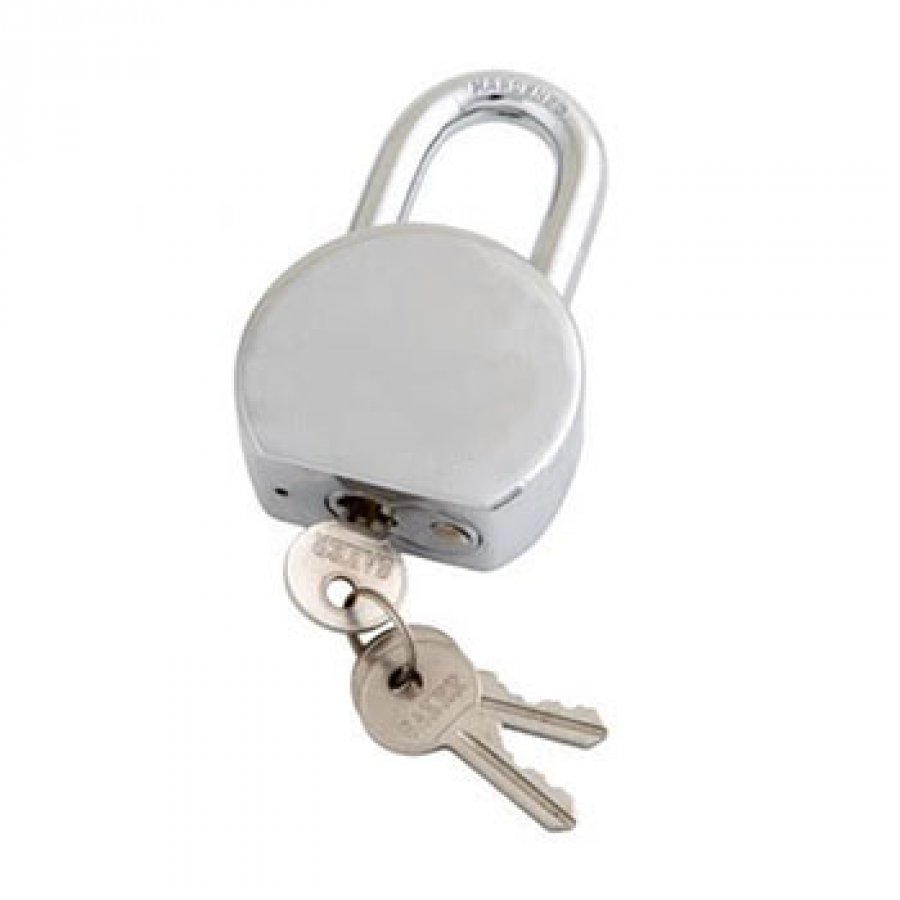

1>material: lock body with #45 steel
2>brass material or zinc alloy material with changeable model
3>hardened shackle with chrome plated in A3 steel
4>3pcs brass keys with round head
5>surface finishing:satin/brush satin nickel/satin chrome/brush chrome
6>double blister and box package are available

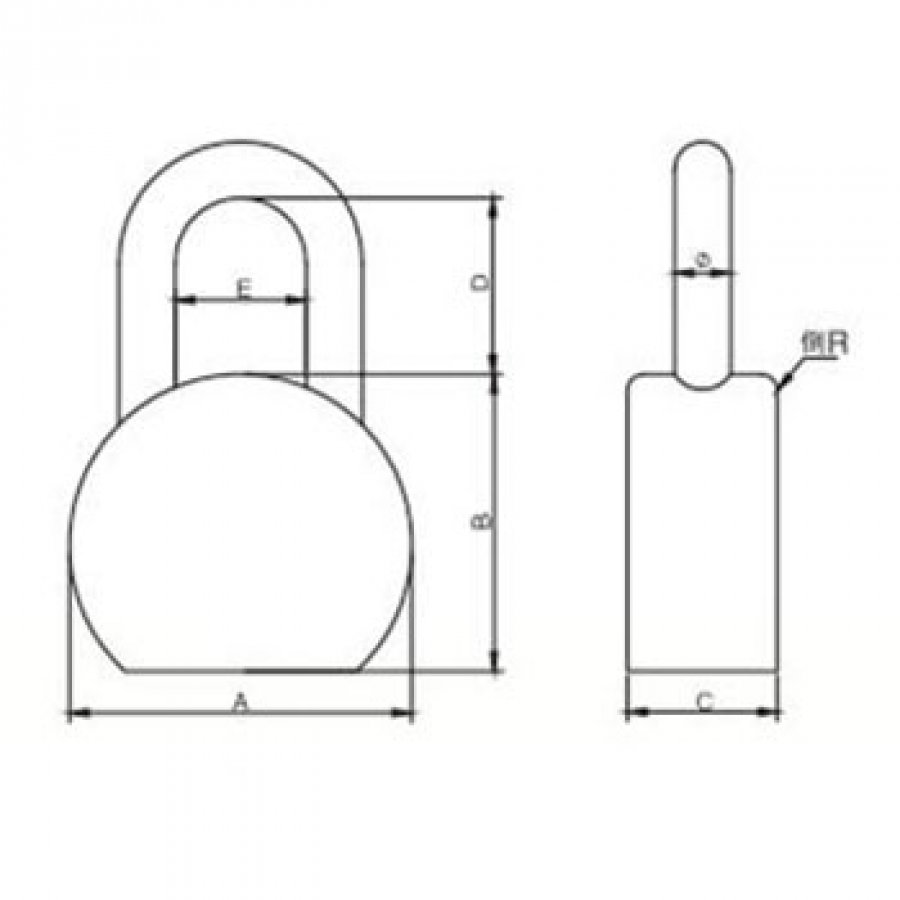

ITEM NO. | SIZE | HS CODE | MEASURES | |||||
A | B | C | D | E | DIA | |||
700-54 | 54mm | 8301100000 | 54 | 46 | 24 | 25 | 20.5 | 8.5 |
700L-54 | 54mm | 8301100000 | 54 | 46 | 24 | 47 | 20.5 | 8.5 |
700-64 | 64mm | 8301100000 | 64 | 55.6 | 28 | 33 | 24.5 | 10.5 |
700L-64 | 64mm | 8301100000 | 64 | 55.6 | 28 | 56 | 24.5 | 10.5 |
700-79 | 79mm | 8301100000 | 79 | 69 | 30 | 43.5 | 32 | 12 |
700L-79 | 79mm | 8301100000 | 79 | 69 | 30 | 74 | 32 | 12 |
