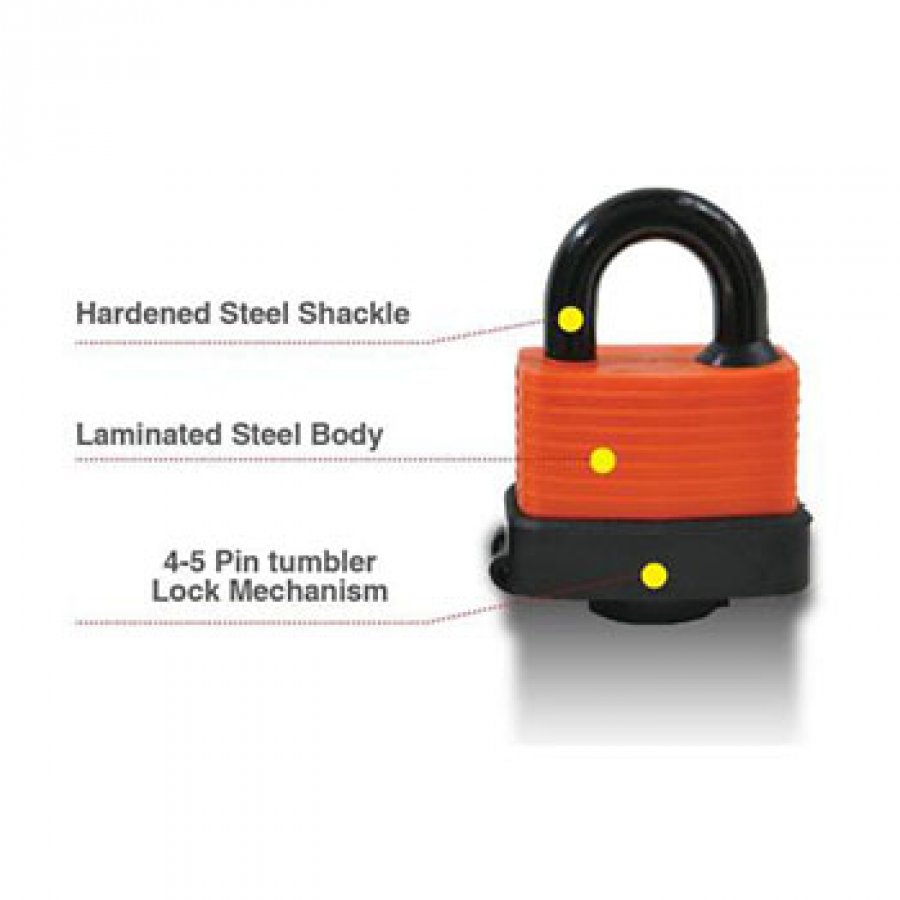

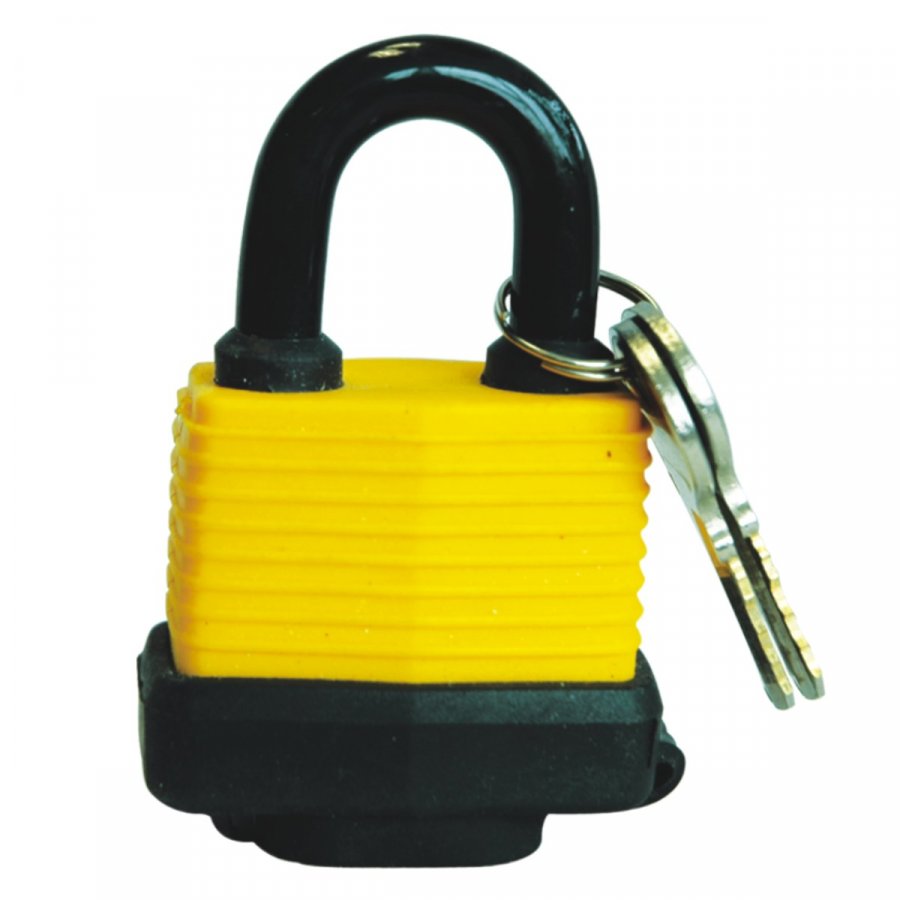

1>Thermoplastic encase hardened steel shackle resists sawing,cutting and corrosion,normal or long shackle
2>strong laminated steel body covered with thermoplstic jacket seel waster,dust,moisture and dirty,weather-resistant,jacket available in different color
3>double locking mechanism
4>Brass cylinder or zinc alloy cylinder for maximum pick,resistance and smooth operation in all weather conditions
5>two steel key or brass key with nickel plated,available with keyed alike and keyed difference
6>BOX PACKAGE OR DOUBLE BLISTER PACKAGE ARE AVAILABLE

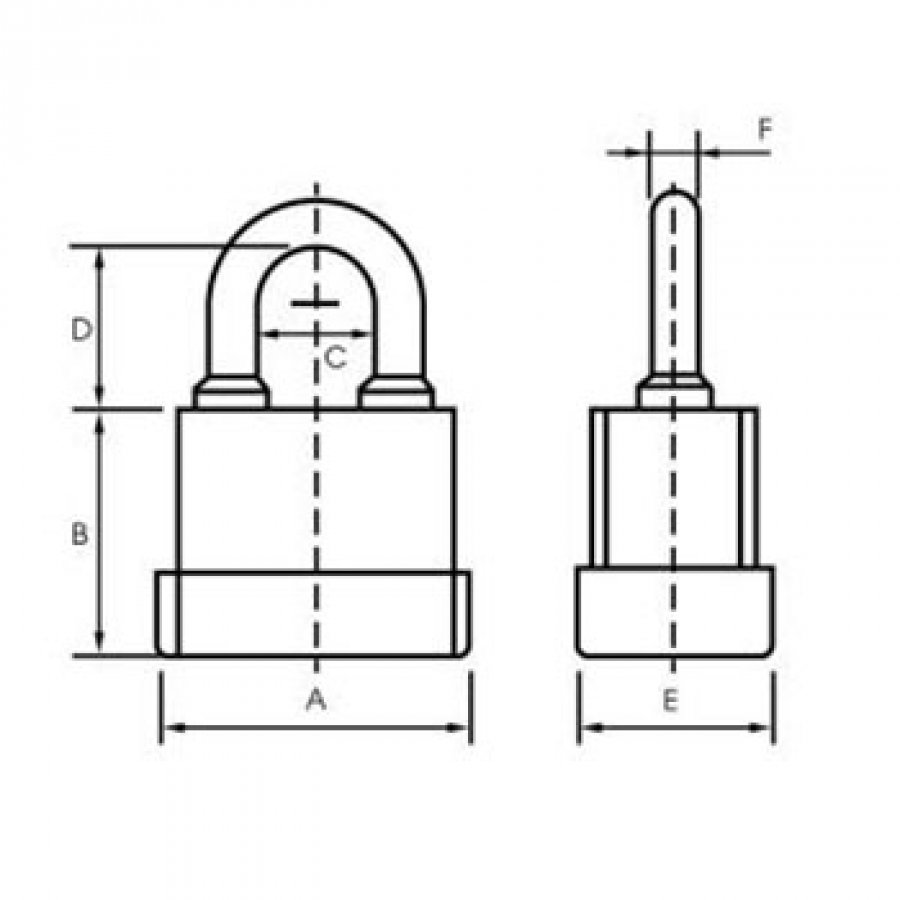

| ITEM NO. | SIZE | HS CODE | MEASURES |
| A | B | C | D | E | F | pin no. |
| MTJ0130 | 30mm | 8301100000 | 39 | 30 | 13.5 | 14 | 28 | 6 | 4 |
| MTJ0140 | 40mm | 8301100000 | 49 | 40 | 19.5 | 19.5 | 31 | 7.5 | 4 |
| MTJ0150 | 50mm | 8301100000 | 59 | 44 | 22.5 | 23 | 35 | 10.5 | 5 |
| MTJ0165 | 65mm | 8301100000 | 74 | 51 | 28 | 33.5 | 40 | 13 | 5 |
| MTJ0230 | 30mm | 8301100000 | 39 | 30 | 13.5 | 36 | 28 | 6 | 4 |
| MTJ0240 | 40mm | 8301100000 | 49 | 40 | 19.5 | 41 | 31 | 7.5 | 4 |
| MTJ0250 | 50mm | 8301100000 | 59 | 44 | 22.5 | 57 | 35 | 10.5 | 5 |
| MTJ0265 | 65mm | 8301100000 | 74 | 51 | 28 | 82 | 40 | 13 | 5 |
| ITEM NO. | SIZE | HS CODE | MEASURES |
| A | B | C | DIA | E |
|
|
| MM0145 | 45mm | 8301100000 | 45 | 17 | 22.3 | 6 | 17 |
|
|
| MM0150 | 50mm | 8301100000 | 50 | 19.5 | 23.5 | 7.8 | 20 |
|
|
