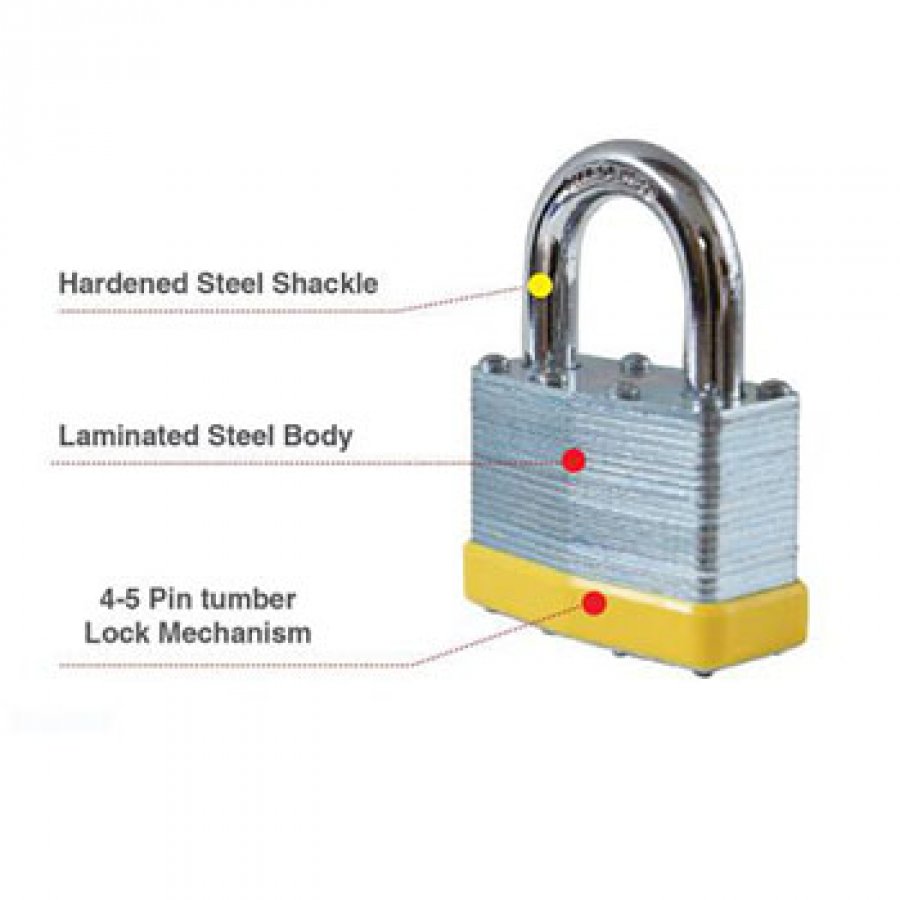

1>hardened steel chrome plated shackle resists sawing,prying andfiling,normal or long shackle available
2>Galvanized-steel lockbody is individually zinc plated or nickel plated for corrosion protection
3>Brass cylinder or zinc alloy cylinder for maximum pick,resistance and smooth operation in all weather conditions
4>two steel key or brass key with nickel plated,available with keyed alike and keyed difference
5>BOX PACKAGE OR DOUBLE BLISTER PACKAGE ARE AVAILABLE

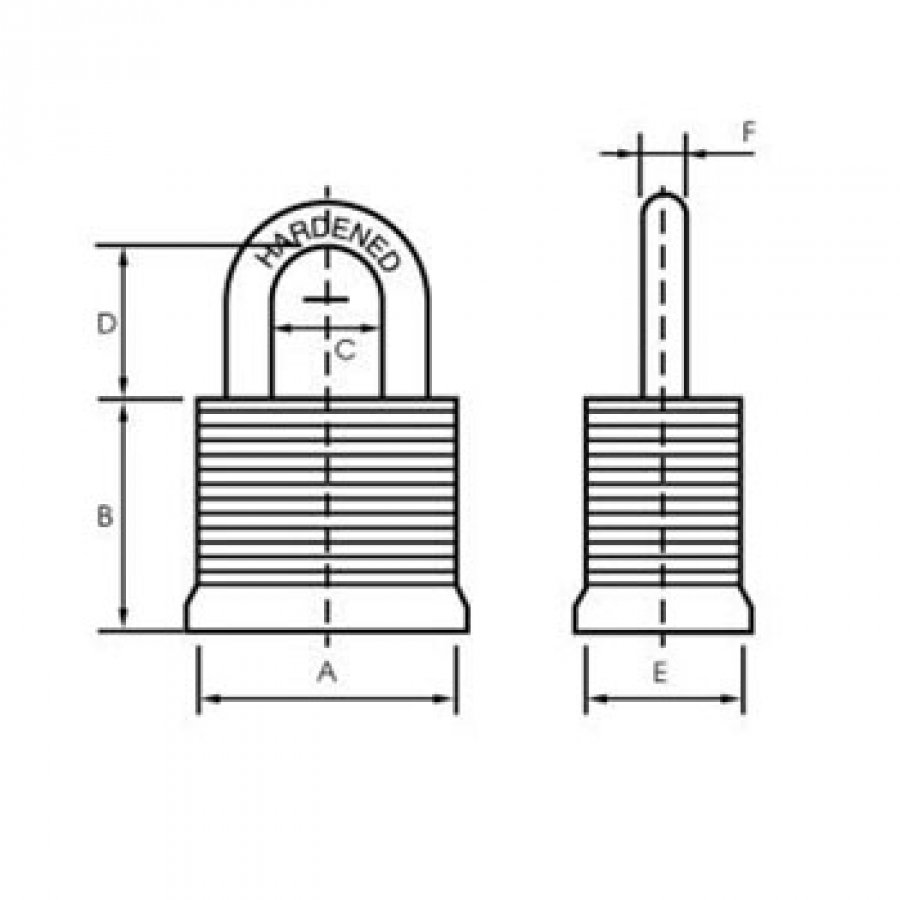

ITEM NO. | SIZE | HS CODE | MEASURES | ||||||
A | B | C | D | E | F | pin no. | |||
MQC0130 | 30mm | 8301100000 | 31 | 26.4 | 14.5 | 17.5 | 17.5 | 5 | 4 |
MQC0140 | 40mm | 8301100000 | 40 | 33 | 20.5 | 24 | 22.5 | 6.1 | 4 |
MQC0145 | 45mm | 8301100000 | 45 | 33 | 21 | 26 | 23.5 | 7 | 4 |
MQC0150 | 50mm | 8301100000 | 50 | 37.5 | 24.5 | 27.5 | 26 | 8.8 | 5 |
MQC0165 | 65mm | 8301100000 | 65 | 45 | 30 | 38 | 31 | 11 | 5 |
