Products Details

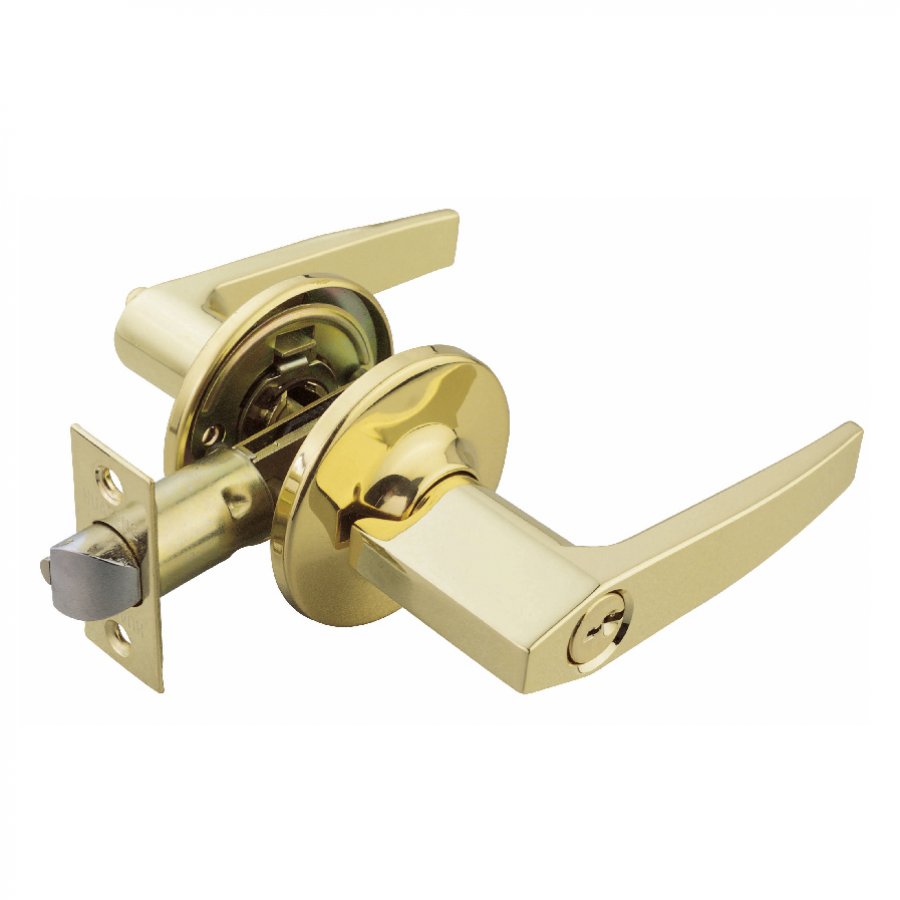

1>Half Round Drive Tubular Locks

2>lever:Zinc alloy material lever

3>plate:brass material and iron lining

4>lockhead:zinc alloy cylinder with zinc alloy core, then with brass cover

5>adjustable latch 60~70mm zinc alloy latch

6>keys:3pcs brass key in KWISET keyway

7>package:box and blister are available

8>conforms with ANSI Grade 3 Exceeds 200,000 cycles.

9>available in Entry model, privacy model and passage model

10>finishing available in ANTIQUE BRASS PLATED,BRASS PLATED,SATIN NICKEL PLATED,ORB



Item no.applicationAnsi Grade ULHS codeQTY/CTNcarton sizeGW/NW
8308S-ETEntry modelGrade 3
83014000002444*37.5*5321.7/16.6
8308S-BKprivacy modelGrade 3
83014000002444*37.5*5319.7/13.7
8308S-PSpassageGrade 3
83014000002444*37.5*5319.7/13.7
