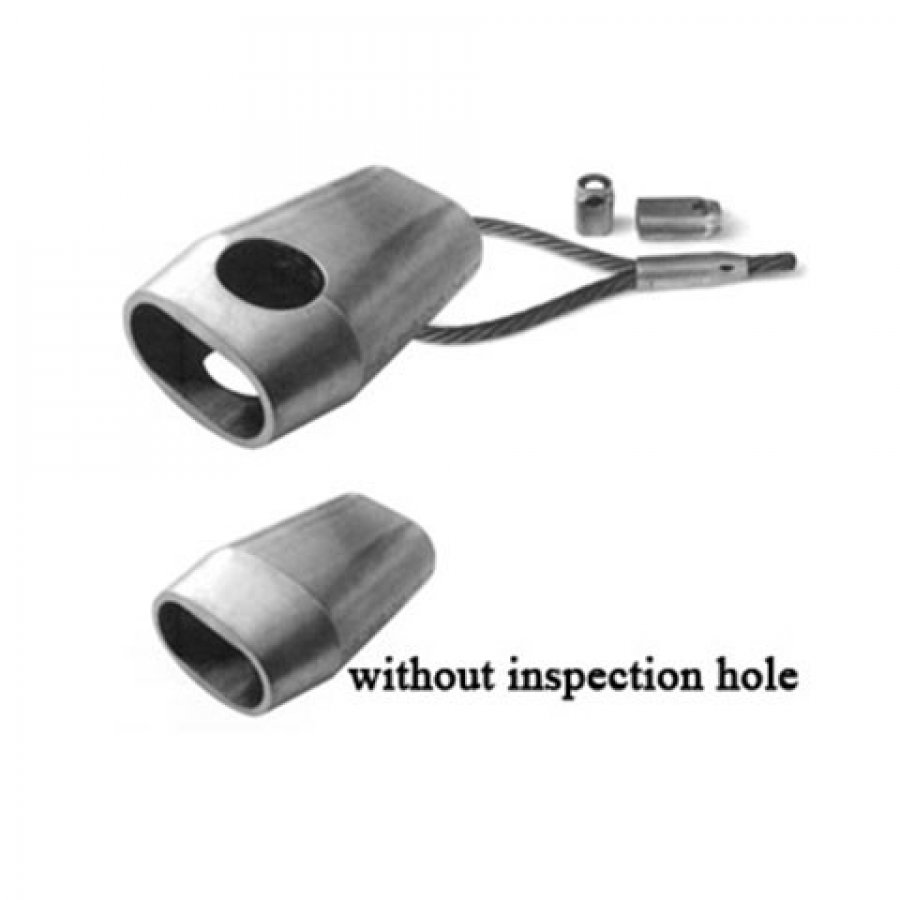

Aluminium Ferrules Form C

The inspection hole guarantees control of the correct inserted length of wire rope before and after swaging.

These types of sleeves have to be swaged with the conical type C swaging dies.

I want to inquire

Add to Inquiry Sheet

Products Details

Part No.	Ferrule Code.	L1	L2
Part No.	Ferrule Code.	(mm)	(mm)
SL950080	8	43	34
SL950090	9	48	38.5
SL950100	10	53	42
SL950110	11	59	46.7
SL950120	12	65	50.2
SL950130	13	70	54.7
SL950140	14	75	58.2
SL950160	16	85	66.5
SL950180	18	96	75
SL950200	20	106	83
SL950220	22	116	91
SL950240	24	126	99.5
SL950260	26	136	107.2
SL950280	28	147	115.5
SL950300	30	158	125
SL950320	32	170	135
SL950360	36	190	150
SL950380	38	200	158
SL950440	44	235	186
SL950520	52	276	218
