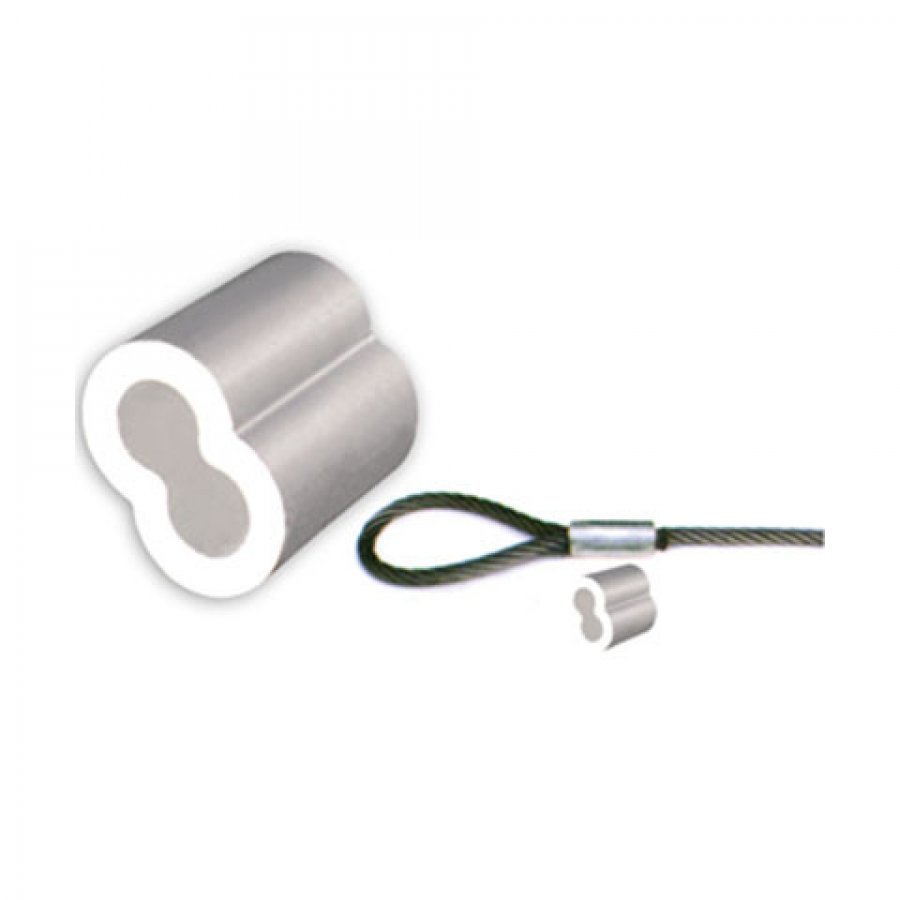

Aluminium Hourglass Sleeves

I want to inquire

Add to Inquiry Sheet

Products Details

Part No.	Size		A		B		C		D		L		Weight
Part No.	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	kgs/1000pcs
SL980364 .	3/64	1.19	1/16	1.59	1/8	3.18	9/64	3.6	13/64	5.2	3/8	9.5	0.276
SL980116 .	1/16	1.58	5/64	1.98	5/32	3.97	11/64	4.4	1/4	6.4	3/8	9.5	0.433
SL980564 .	5/64	1.98	3/32	2.38	3/16	4.76	13/64	5.2	5/16	7.9	3/8	9.5	0.645
SL980332 .	3/32	2.38	1/8	3.18	1/4	6.35	9/32	7.1	13/32	10.3	1/2	12.7	1.45
SL980108 .	1/8	3.18	5/32	3.97	5/16	7.94	11/32	8.7	1/2	12.7	5/8	16	2.7
SL980532 .	5/32	3.97	3/16	4.76	3/8	9.53	3/8	9.53	9/16	14.3	11/16	17	3.67
SL980316 .	3/16	4.76	7/32	5.56	7/16	11.11	7/16	11.11	21/32	16.7	1	25	7.18
SL980732 .	7/32	5.56	1/4	6.35	1/2	12.7	1/2	12.7	3/4	19	11/16	26	10
SL980104 .	1/4	6.35	9/32	7.14	9/16	14.29	17/32	13.5	13/16	20.6	11/8	28	11.76
SL980932 .	9/32	7.14	5/16	7.94	5/8	15.88	9/16	14.3	7/8	22.2	13/16	30	13.62
SL980516 .	5/16	7.94	3/8	9.53	23/32	19.05	11/16	17.5	11/32	26.2	11/4	32	20.94
SL980308 .	3/8	9.53	7/16	11.11	27/32	22.23	3/4	19.1	15/32	29.4	17/16	36	28.18
SL980716 .	7/16	11.11	1/2	12.7	1	25.4	15/16	23.8	17/16	36.5	1 11/16	42	52
SL980102 .	1/2	12.7	9/16	14.29	1 1/8	28.58	11/16	27	15/8	41.3	2	50	80.15
SL980916 .	9/16	14.29	5/8	15.88	1 1/4	31.75	11/8	28.6	13/4	44.5	21/8	54	99.88
SL980508 .	5/8	15.88	11/16	17.46	1 3/8	34.93	11/4	31.8	1 15/16	49.2	21/2	64	139.78
