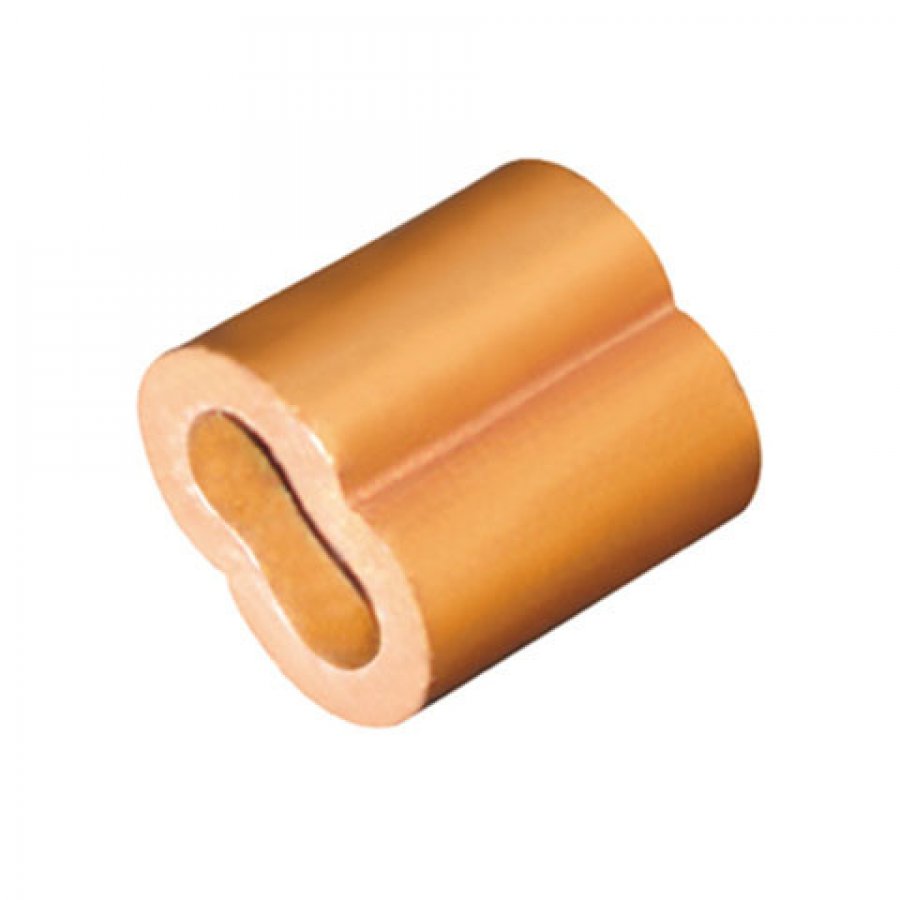

Copper Hourglass Sleeves

Extruded copper hourglass sleeves and stop buttons have efficient cold forming properties, and are ideal for non-rusting permanent splices. These sleeves and buttons are 99% pure copper, adn the mass of copper provides excellent holding strength.

Return eye splice using copper hourglass sleeves will attain 95% of Improved Plow wire rope catalog strength when properly swaged.

CAUTION: Return eye slings using copper hourglass sleeves must be properly swaged to attain strength.

I want to inquire

Add to Inquiry Sheet

Products Details

Part No.	Size	A	B	C	D	L	Weight
Part No.	(inch)	(inch)	(inch)	(inch)	(inch)	(inch)	kgs/1000pcs
SL880364	3/64"	1/16	1/8	9/64	13/64	3/8	1
SL880116	1/16"	3/32	11/64	11/64	1/4	25/64	1.4
SL880332	3/32"	7/64	1/4	15/64	3/8	29/64	4
SL880108	1/8"	5/32	21/64	21/64	1/2	9/16	8
SL880532	5/32"	3/16	27/64	3/8	19/32	5/8	12.3
SL880316	3/16"	7/32	7/16	7/16	43/64	7/8	25
SL880732	7/32"	1/4	33/64	15/32	23/32	7/8	32
SL880104	1/4"	9/32	19/32	17/32	27/32	11/8	36
SL880516	5/16"	3/8	23/32	21/32	11/64	11/8	64
SL880308	3/8"	7/16	13/16	23/32	11/8	11/2	89
SL880102	1/2"	19/32	17/64	31/32	1 15/32	17/8	270
