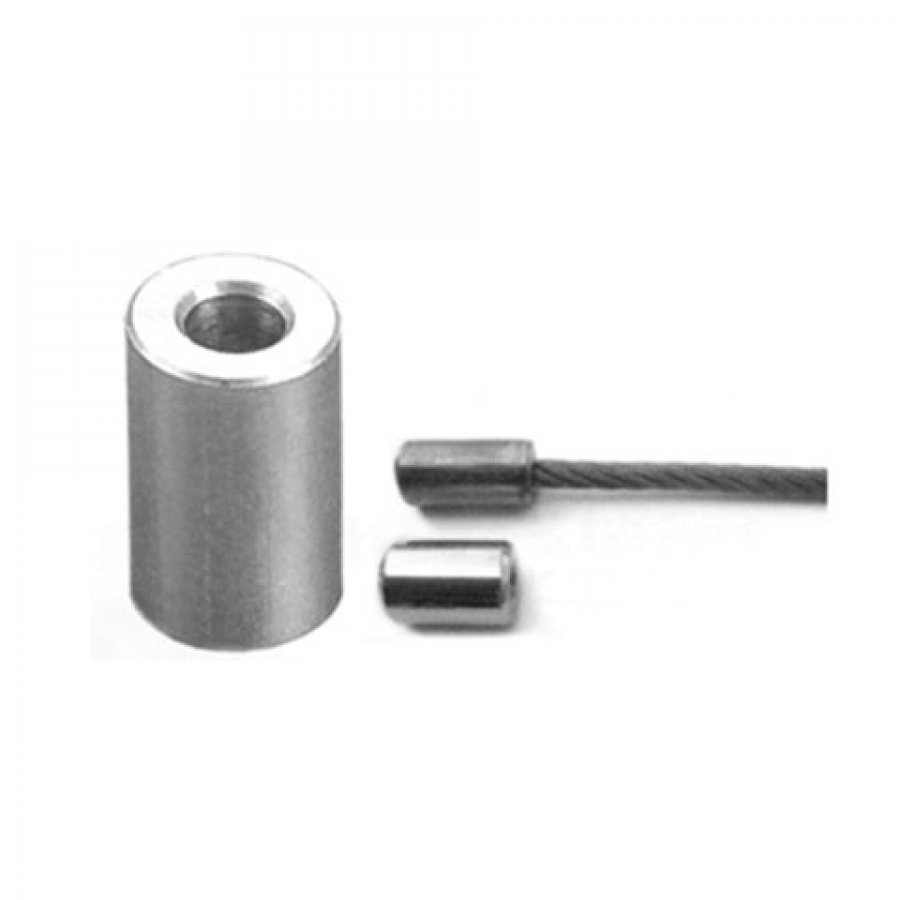

Steel Stop Buttons

Specially processed low carbon steel

I want to inquire

Add to Inquiry Sheet

Part No.	Rope Size	A	D	L	Max. after Swage Dimensions(inch)	Weight
Part No.	(inch)	(inch)	(inch)	(inch)	Max. after Swage Dimensions(inch)	lbs/100pcs
SL770108	1/8	0.14	0.44	0.5	0.4	2
SL770316	3/16	0.2	0.56	0.7	0.52	4
SL770104	1/4	0.3	0.63	1.06	0.58	8
SL770516	5/16	0.36	0.88	1.13	0.77	16
SL770308	3/8	0.42	0.88	1.48	0.77	15
SL770716	7/16	0.48	1.13	1.63	1.03	30
SL770102	1/2	0.55	1.31	1.89	1.16	50
SL770916	9/16	0.61	1.44	2.02	1.29	70
SL770508	5/8	0.67	1.56	2.42	1.42	100
SL770304	3/4	0.79	1.69	2.73	1.55	131
SL770708	7/8	0.94	2	3.27	1.8	220
SL771000	1	1.6	2.25	3.67	2.05	310
SL771108	1 1/8	1.19	2.56	4.05	2.3	450
SL771104	1 1/4	1.33	2.81	4.58	2.56	650
