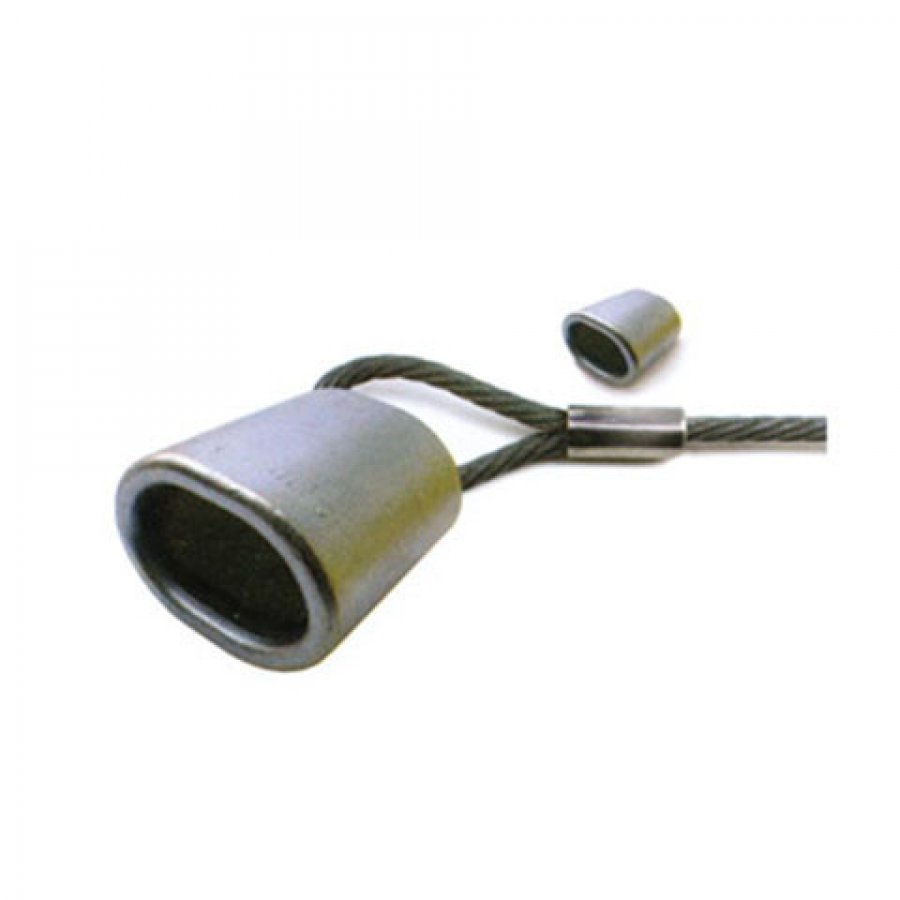

Steel Oval Sleeves

Specially processed low carbon steel

Note: Steel Oval Sleeves are recommended for use with 6x19 or 6x37, IPS ORxIP(EIP), RRL, FC or IWRC wire rope

I want to inquire

Add to Inquiry Sheet

Part No.	Rope Size	L	B	C	D	Max. after Swage Dimensions(inch)	Weight
Part No.	(inch)	(inch)	(inch)	(inch)	(inch)	Max. after Swage Dimensions(inch)	lbs/100pcs
SL790516	5/16	1.25	1.08	0.81	0.19	0.77	17
SL790308	3/8	1.25	1.12	0.81	0.14	0.77	13
SL790716	7/16	1.63	1.41	1.02	0.19	1.03	31
SL790102	1/2	1.63	1.44	1.02	0.16	1.03	27
SL790916	9/16	2.25	1.72	1.23	0.23	1.29	63
SL790508	5/8	2.25	1.84	1.28	0.2	1.29	54
SL790304	3/4	2.63	2.16	1.52	0.23	1.55	90
SL790708	7/8	2.88	2.5	1.75	0.27	1.8	126
SL791000	1	3.06	2.84	2	0.33	2.05	187
SL791104	11/4	4.06	3.5	2.5	0.38	2.56	384
