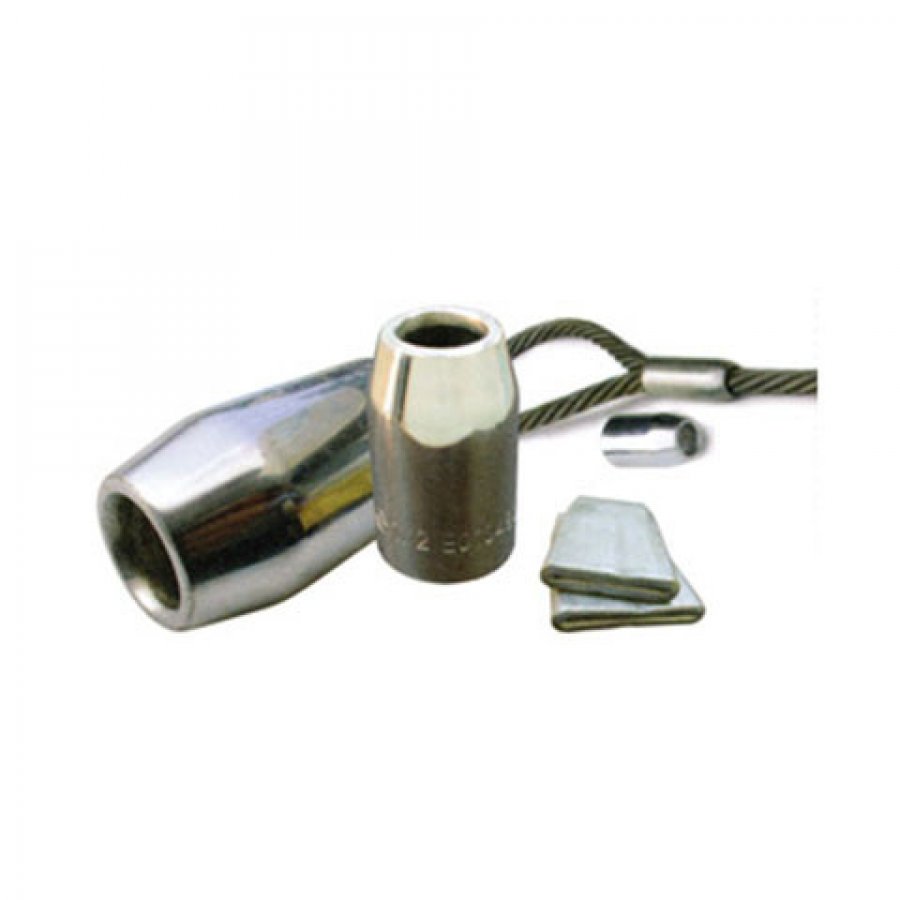

Flemish Eye Steel Swaging Sleeves (S-505)

Our modern in-house forging, heat treatment, sand blasting, auto-marding facilities assures the consistent quality of Flemish eye steel sleeves form 1/4" to 6" (galvanized and self-colored).

I want to inquire

Add to Inquiry Sheet

Products Details

Part No.	For Wire Rope	Dimension(inch)					Max. after Swage Dimensions(inch)	Weight
Part No.	Size(inch)	A	B	D	E	C	Max. after Swage Dimensions(inch)	kgs/100pcs
SL700104	1/4"	1	0.66	0.31	0.28	0.47	0.57	2.27
SL700516	5/16"	1.5	0.91	0.38	0.44	0.62	0.75	6.36
SL700308	3/8"	1.5	0.91	0.47	0.39	0.66	0.75	6.36
SL700716	7/16"	2	1.22	0.53	0.65	0.85	1.01	15
SL700102	1/2"	2	1.22	0.63	0.56	0.91	1.01	13
SL700916	9/16"	2.75	1.47	0.7	0.63	1.03	1.24	29
SL700508	5/8"	2.75	1.47	0.75	0.63	1.09	1.24	26
SL700304	3/4"	3.19	1.72	0.91	0.84	1.28	1.46	40
SL700708	7/8"	3.56	2.03	1.03	1	1.53	1.68	60
SL701000	1"	4	2.28	1.16	1.13	1.72	1.93	89
SL701108	1 1/8"	4.8	2.5	1.28	1.25	1.94	2.13	118
SL701104	1 1/4"	5.19	2.78	1.44	1.41	2.16	2.32	161
SL701308	1 3/8"	5.81	3	1.56	1.56	2.38	2.52	192
SL701102	1 1/2"	6.25	3.25	1.69	1.69	2.63	2.71	227
SL701304	1 3/4"	7.25	3.84	1.94	1.97	3.13	3.1	366
SL702000	2"	8.5	4.38	2.25	2.25	3.63	3.56	514
SL702104	2 1/4"	9.56	5.03	2.5	2.53	4.03	4.12	879
SL702102	2 1/2"	10.5	5.5	2.75	2.81	4.5	4.5	1068
SL702304	2 3/4"	11.5	5.75	3	3.09	4.75	4.7	1271
SL703000	3"	12	6	3.25	3.38	5	4.96	1335
SL703104	3 1/4"	13	6.5	3.86	3.54	5.43	5.37	1650
SL703102	3 1/2"	14	7	3.88	3.94	5.84	5.77	2106
SL703304	3 3/4"	15	7.5	4.06	4.25	6.31	6.23	2497
SL704000	4"	16	8.13	4.38	4.5	6.81	6.69	3087
SL704102	4 1/2"	18	9.13	4.88	5.06	7.66	7.45	4540
SL705000	5"	20	10.52	5.5	5.63	8.73	8.28	6600
SL706000	6"	24	12.54	6.5	6.75	10.2	9.93	12300
