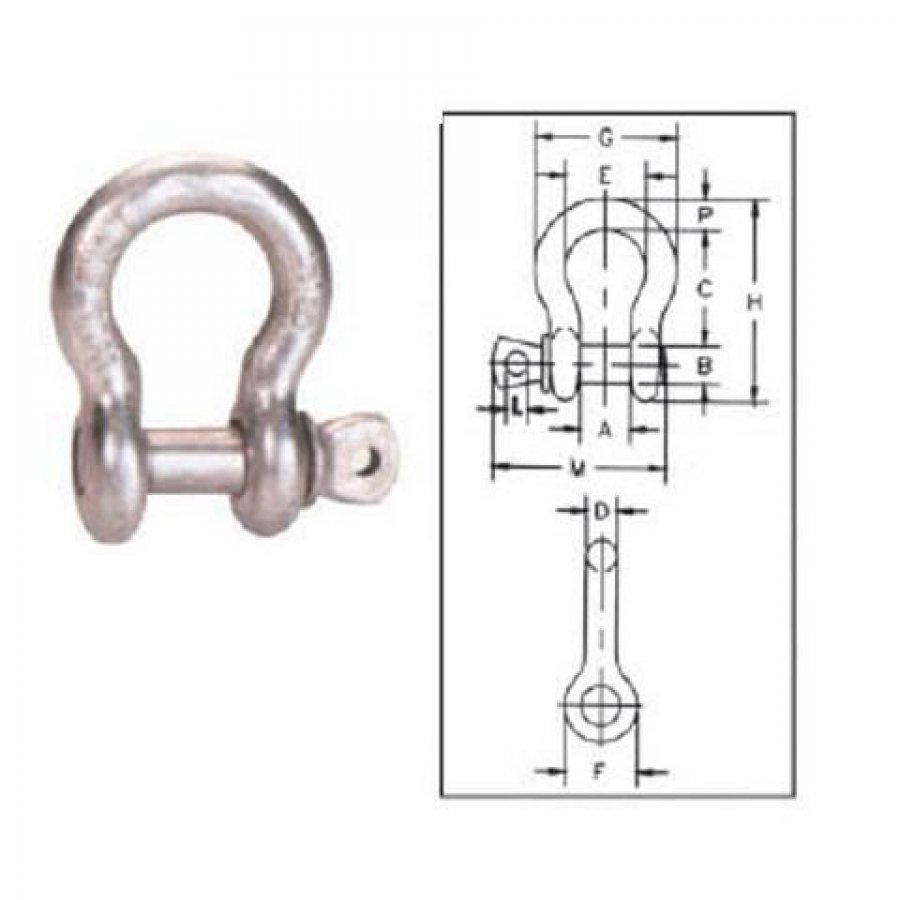

Screw Pin Anchor Shackles G-209

Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C-271D
Type IVA,Grade A,Class 2,except for those provisions required of the contractor.

I want to inquire

Add to Inquiry Sheet

Products Details

Size(in.)	Working Load Limit(t)	PART NUMBER	Weight Each	Dimensions											Tolerance’+/-
		PART NUMBER	Weight Each	(in.)											Tolerance’+/-
		G-209	(lbs)	A	B	C	D	E	F	G	H	L	M	P	C	A
3/16	1/3	RSAS0316	0.06	0.38	0.25	0.88	0.19	0.6	0.56	0.98	1.47	0.16	1.14	0.19	0.06	0.06
1/4	1/2	RSAS0104	0.1	0.47	0.31	1.13	0.25	0.78	0.61	1.28	1.84	0.19	1.43	0.25	0.06	0.06
5/16	3/4	RSAS0516	0.19	0.53	0.38	1.22	0.31	0.84	0.75	1.47	2.09	0.22	1.71	0.31	0.06	0.06
3/8	1	RSAS0308	0.31	0.66	0.44	1.44	0.38	1.03	0.91	1.78	2.49	0.25	2.02	0.38	0.13	0.06
7/16	1-1/2	RSAS0716	0.38	0.75	0.5	1.69	0.44	1.16	1.06	2.03	2.91	0.31	2.37	0.44	0.13	0.06
1/2	2	RSAS0102	0.72	0.81	0.63	1.88	0.5	1.31	1.19	2.31	3.28	0.38	2.69	0.5	0.13	0.06
5/8	3-1/4	RSAS0508	1.37	1.06	0.75	2.38	0.63	1.69	1.5	2.94	4.19	0.44	3.34	0.69	0.13	0.06
3/4	4-3/4	RSAS0304	2.35	1.25	0.88	2.81	0.75	2	1.81	3.5	4.97	0.5	3.97	0.81	0.25	0.06
7/8	6-1/2	RSAS0708	3.62	1.44	1	3.31	0.88	2.28	2.09	4.03	5.83	0.5	4.5	0.97	0.25	0.06
1	8-1/2	RSAS1000	5.03	1.69	1.13	3.75	1	2.69	2.38	4.69	6.56	0.56	5.13	1.06	0.25	0.06
1-1/8	9-1/2	RSAS1108	7.41	1.81	1.25	4.25	1.16	2.91	2.69	5.16	7.47	0.63	5.71	1.25	0.25	0.06
1/1/4	12	RSAS1104	9.5	2.03	1.38	4.69	1.29	3.25	3	5.75	8.25	0.69	6.25	1.38	0.25	0.06
1-3/8	13-1/2	RSAS1308	13.53	2.25	1.5	5.25	1.42	3.63	3.31	6.38	9.16	0.75	6.83	1.5	0.25	0.13
1-1/2	17	RSAS1102	17.2	2.38	1.63	5.75	1.54	3.88	3.63	6.88	10	0.81	7.33	1.62	0.25	0.13
1-3/4	25	RSAS1304	27.78	2.88	2	7	1.84	5	4.19	8.86	12.34	1	9.06	2.25	0.25	0.13
2	35	RSAS2000	45	3.25	2.25	7.75	2.08	5.75	4.81	9.97	13.68	1.22	10.35	2.4	0.25	0.13
2-1/2	35	RSAS2102	85.75	4.13	2.75	10.5	2.71	7.25	5.69	12.87	17.84	1.38	13	3.13	0.25	0.25
