Round Pin Anchor Shackles G-213

Round pin anchor shackles meet the performance requirements of Federal Specification RR-C-271D
Type IVA,Grade A,Class 1,except for those provisions required of the contractor.

I want to inquire

Add to Inquiry Sheet

Products Details

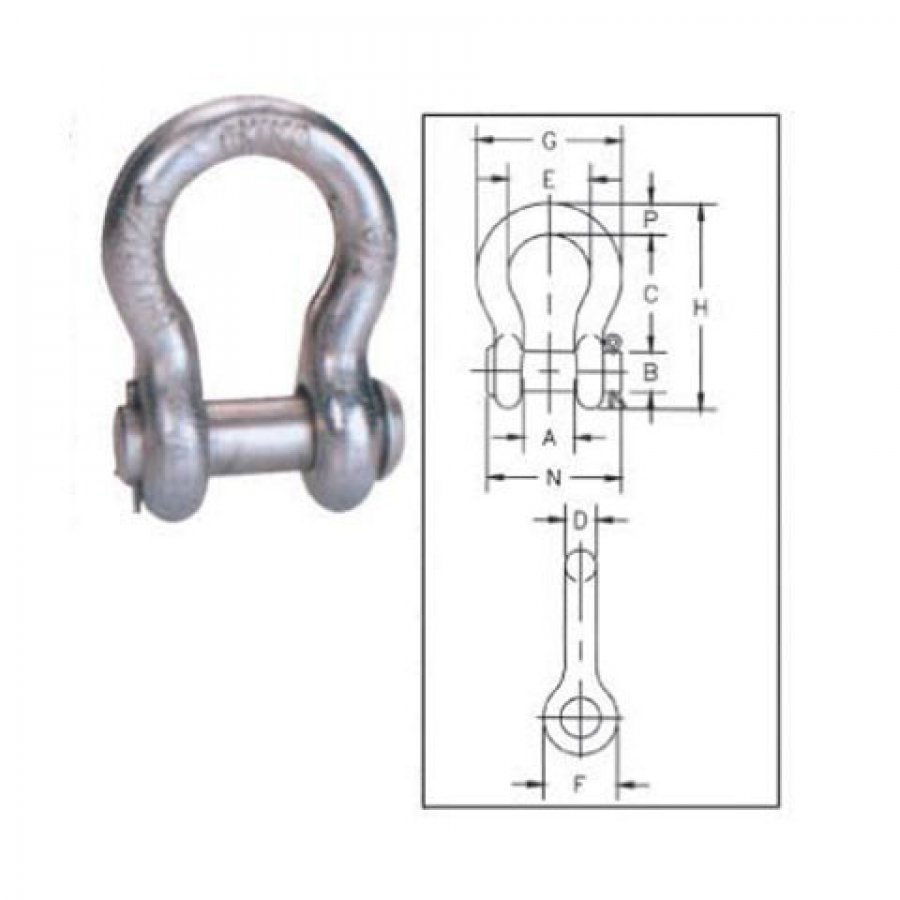

Nominal Size	Working Load Limit (t)	Part No.	Weight Each	Dimensions (in.)									Tolerance +/-
Nominal Size	Working Load Limit (t)	Part No.	(lbs)	A	B	C	D	E	F	G	H	N	C	A
1/4	1/2	RRAS 0104	0.13	0.47	0.31	1.13	0.25	0.78	0.61	1.28	1.84	1.34	0.06	0.06
5/16	3/4	RRAS 0506	0.18	0.53	0.38	1.22	0.31	0.84	0.75	1.47	2.09	1.59	0.06	0.06
3/8	1	RRAS 308	0.29	0.66	0.44	1.44	0.38	1.03	0.91	1.78	2.49	1.86	0.13	0.06
7/16	1-1/2	RRAS 706	0.38	0.75	0.5	1.69	0.44	1.16	1.06	2.03	2.91	2.13	0.13	0.06
1/2	2	RRAS 0102	0.71	0.81	0.63	1.88	0.5	1.31	1.19	2.31	3.28	2.38	0.13	0.06
5/8	3-1/4	RRAS 508	1.5	1.06	0.75	2.38	0.63	1.69	1.5	2.94	4.19	2.91	0.13	0.06
3/4	4-3/4	RRAS 304	2.32	1.25	0.88	2.81	0.75	2	1.81	3.5	4.97	3.44	0.25	0.06
7/8	6-1/2	RRAS 708	3.49	1.44	1	3.31	0.88	2.28	2.09	4.03	5.83	3.81	0.25	0.06
1	8-1/2	RRAS 1000	5	1.69	1.13	3.75	1	2.69	2.38	4.69	6.56	4.53	0.25	0.06
1-1/8	9-1/2	RRAS 1108	6.97	1.81	1.25	4.25	1.13	2.91	2.69	5.16	7.47	5.13	0.25	0.06
1-1/4	12	RRAS 1104	9.75	2.03	1.38	4.69	1.29	3.25	3	5.75	8.25	5.5	0.25	0.06
1-3/8	13-1/2	RRAS 1308	13.25	2.25	1.5	5.25	1.42	3.63	3.31	6.38	9.16	6.13	0.25	0.13
1-1/2	17	RRAS 1102	17.25	2.38	1.63	5.75	1.54	3.88	3.63	6.88	10	6.5	0.25	0.13
1-3/4	25	RRAS 1304	29.46	2.88	2	7	1.84	5	4.19	8.86	12.34	7.75	0.25	0.13
2	35	RRAS 2000	45.75	3.25	2.25	7.75	2.08	5.75	4.81	9.97	13.68	8.75	0.25	0.13
