Bolt Type Chain Shackles G-2150

Bolt Type Chain shackles .Thin hex head bolt-nut with cotter pin. Meets the performance requirements of Federal Specification RR-C-271D
Type IVB,Grade A,Class 3,except for those provisions required of the contractors.

I want to inquire

Add to Inquiry Sheet

Products Details

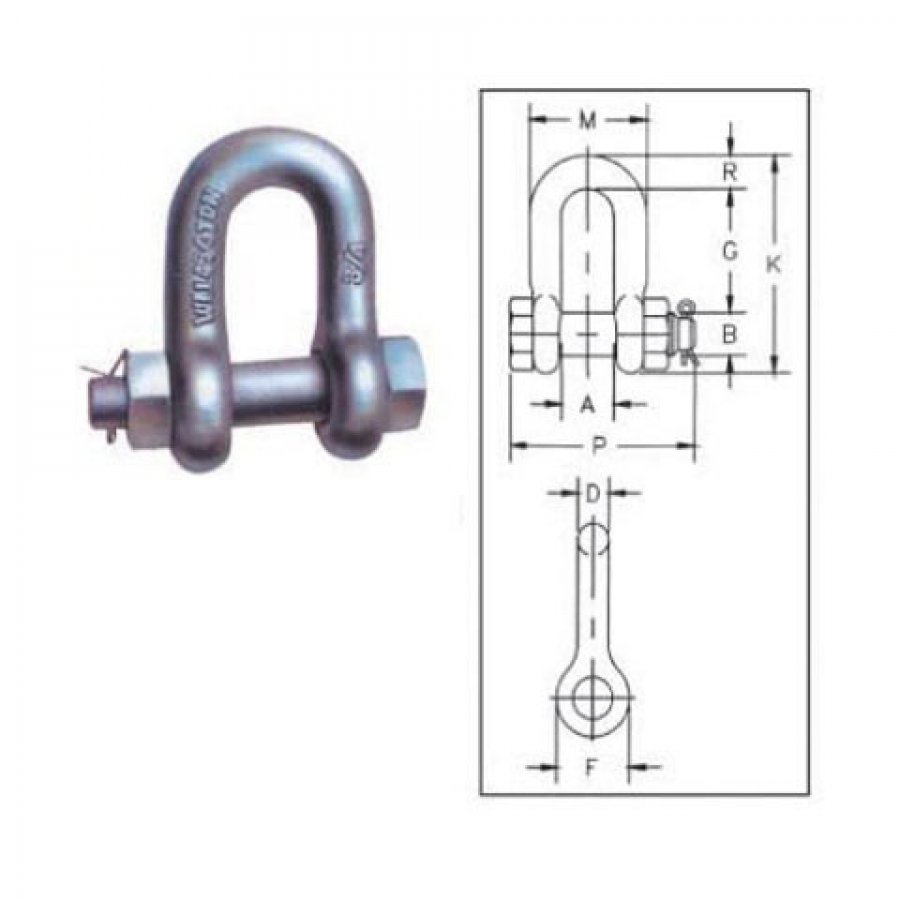

Nominal Size(in.)	Working Load Limit(t)	PART NUMBER	Weighteach	Dimensions(in.)									Tolerance+/-
Nominal Size(in.)	Working Load Limit(t)	G-2150	(lbs)	A	B	D	F	G	K	M	P	R	G	A
1/4	1/2	RBCS0104	0.13	0.47	0.31	0.25	0.62	0.91	1.59	0.97	1.56	0.25	0.06	0.06
5/16	3/4	RBCS0516	0.23	0.53	0.38	0.31	0.75	1.07	1.91	1.15	1.82	0.31	0.06	0.06
3/8	1	RBCS0308	0.33	0.66	0.44	0.38	0.92	1.28	2.31	1.42	2.17	0.38	0.13	0.06
7/16	1-1/2	RBCS0716	0.49	0.75	0.5	0.44	1.06	1.48	2.67	1.63	2.51	0.44	0.13	0.06
1/2	2	RBCS0102	0.75	0.81	0.64	0.5	1.18	1.66	3.03	1.81	2.8	0.5	0.13	0.06
5/8	3-1/4	RBCS0508	1.47	1.06	0.77	0.63	1.5	2.04	3.76	2.32	3.56	0.63	0.13	0.06
3/4	4-3/4	RBCS0304	2.52	1.25	0.89	0.75	1.81	2.4	4.53	2.75	4.15	0.81	0.25	0.06
7/8	6-1/2	RBCS0708	3.85	1.44	1.02	0.88	2.1	2.86	5.33	3.2	4.82	0.97	0.25	0.06
1	8-1/2	RBCS1000	5.55	1.69	1.15	1	2.38	3.24	5.94	3.69	5.39	1	0.25	0.06
1-1/8	9-1/2	RBCS1108	7.6	1.81	1.25	1.13	2.68	3.61	6.78	4.07	5.9	1.25	0.25	0.06
1/1/4	12	RBCS1104	10.81	2.03	1.4	1.25	3	3.97	7.5	4.53	6.69	1.38	0.25	0.06
1-3/8	13-1/2	RBCS1308	13.75	2.25	1.53	1.38	3.31	4.43	8.28	5.01	7.21	1.5	0.25	0.13
1-1/2	17	RBCS1102	18.5	2.38	1.66	1.5	3.62	4.87	9.05	5.38	7.73	1.62	0.25	0.13
1-3/4	25	RBCS0304	31.4	2.88	2.04	1.75	4.19	5.82	10.97	6.38	9.33	2.12	0.25	0.13
2	35	RBCS2000	46.75	3.25	2.3	2.1	5	6.82	12.74	7.25	10.41	2.36	0.25	0.13
2-1/2	55	RBCS2102	85	4.12	2.8	2.63	5.68	8.07	14.85	9.38	13.58	2.63	0.25	0.25
3	85	RBCS3000	124.25	5	3.25	3	6.5	8.56	16.87	11	15.13	3.5	0.25	0.25
