Bolt Type Ahchor Shacklesg-2130

Bolt Type Anchor shackles with thin head bolt-nut with cotter pin. Meets the performance requirements of Federal Specification RR-C-271D
Type IVA,Grade A,Class 3,except for those provisions required of the contractor.

I want to inquire

Add to Inquiry Sheet

Products Details

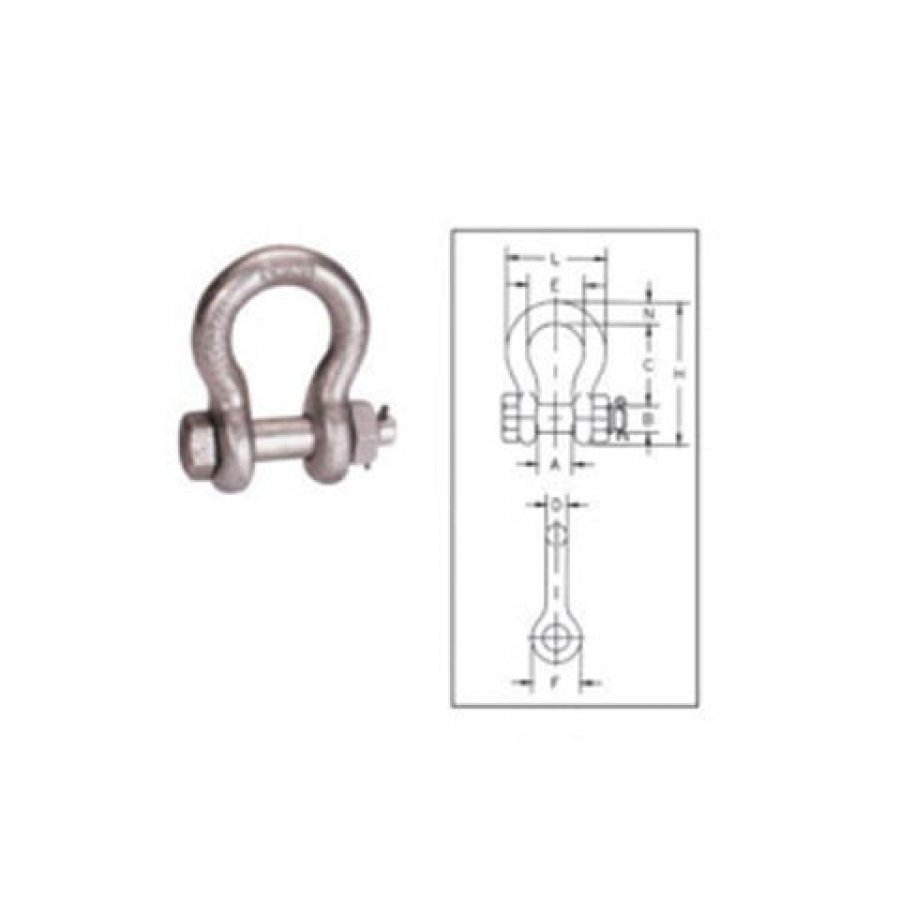

Nominal Size(in.)	Working Load Limit(t)	PART NUMBER	Weight Each	Dimensions(in.)									Tolerance +/-
Nominal Size(in.)	Working Load Limit(t)	G-2130	(lbs)	A	B	C	D	E	F	H	L	N	C	A
3/16	1/3〒	RBAS0316	0.06	0.38	0.25	0.88	0.19	0.6	0.56	1.47	0.98	0.19	0.06	0.06
1/4	1/2	RBAS0104	0.11	0.47	0.31	1.13	0.25	0.78	0.61	1.84	1.28	0.25	0.06	0.06
5/16	3/4	RBAS0516	0.22	0.53	0.38	1.22	0.31	0.84	0.75	2.09	1.47	0.31	0.06	0.06
3/8	1	RBAS0308	0.33	0.66	0.44	1.44	0.38	1.03	0.91	2.49	1.78	0.38	0.13	0.06
7/16	1-1/2	RBAS0716	0.49	0.75	0.5	1.69	0.44	1.16	1.06	2.91	2.03	0.44	0.13	0.06
1/2	2	RBAS0102	0.79	0.81	0.64	1.88	0.5	1.31	1.19	3.28	2.31	0.5	0.13	0.06
5/8	3-1/4	RBAS0508	1.68	1.06	0.77	2.38	0.63	1.69	1.5	4.19	2.94	0.69	0.13	0.06
3/4	4-3/4	RBAS0304	2.72	1.25	0.89	2.81	0.75	2	1.81	4.97	3.5	0.81	0.25	0.06
7/8	6-1/2	RBAS0708	3.95	1.44	1.02	3.31	0.88	2.28	2.09	5.83	4.03	0.97	0.25	0.06
1	8-1/2	RBAS1000	5.66	1.69	1.15	3.75	1	2.69	2.38	6.56	4.69	1.06	0.25	0.06
1-1/8	9-1/2	RBAS1108	8.27	1.81	1.25	4.25	1.13	2.91	2.69	7.47	5.16	1.25	0.25	0.06
1/1/4	12	RBAS1104	11.71	2.03	1.4	4.69	1.29	3.25	3	8.25	5.75	1.38	0.25	0.06
1-3/8	13-1/2	RBAS1308	15.83	2.25	1.53	5.25	1.42	3.63	3.31	9.16	6.38	1.5	0.25	0.13
1-1/2	17	RBAS1102	19	2.38	1.66	5.75	1.53	3.88	3.63	10	6.88	1.62	0.25	0.13
1-3/4	25	RBAS1304	33.91	2.88	2.04	7	1.84	5	4.19	12.34	8.8	2.25	0.25	0.13
2	35	RBAS2000	52.25	3.25	2.3	7.75	2.08	5.75	4.81	13.68	10.15	2.4	0.25	0.13
2-1/2	55	RBAS2102	98.25	4.13	2.8	10.5	2.71	7.25	5.69	17.9	12.75	3.13	0.25	0.25
3	85	RBAS3000	154	5	3.3	13	3.12	7.88	6.5	21.5	14.62	3.62	0.25	0.25
3-1/2	120	RBAS3102	265	5.25	3.76	14.63	3.62	9	8	24.88	17.02	4.38	0.25	0.25
4	150	RBAS4000	338	5.5	4.26	14.5	4	10	9	25.68	18	4.56	0.25	0.25
