Screw Pin Anchor Shackles G-210

Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C-271D
Type IVB,Grade A,Class 2,except for those provisions required of the contractor.

I want to inquire

Add to Inquiry Sheet

Products Details

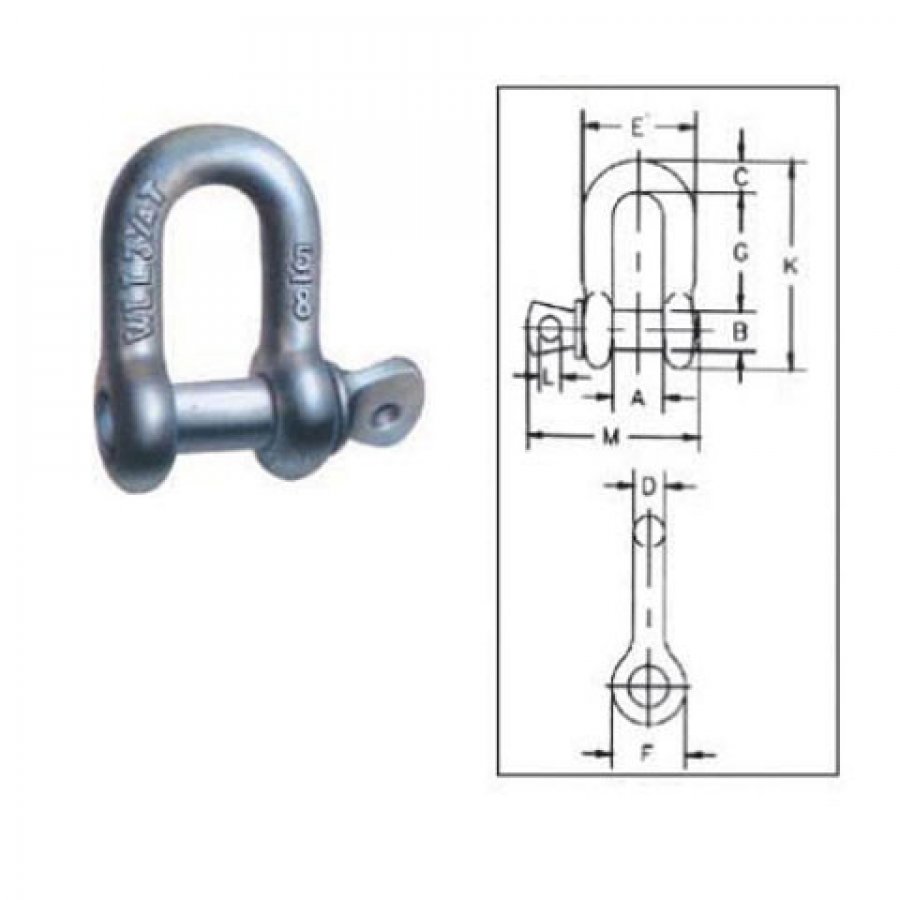

Nominal Size(in.)	Working Load Limit(t)	PART NUMBER	Weight Each(lbs)	Dimensions										Tolerance‘+/-
		PART NUMBER		(in.)										Tolerance‘+/-
		G-210		A	B	C	D	E	F	G	K	L	M	G	A
1/4	1/2	RSCS0104	0.11	0.47	0.31	0.25	0.25	0.97	0.62	0.97	1.59	0.19	1.43	0.06	0.06
5/16	3/4	RSCS0516	0.17	0.53	0.38	0.31	0.31	1.15	0.75	1.07	1.91	0.22	1.71	0.06	0.06
3/8	1	RSCS0308	0.28	0.66	0.44	0.38	0.38	1.42	0.92	1.28	2.31	0.25	2.02	0.13	0.06
7/16	1-1/2	RSCS0716	0.43	0.75	0.5	0.44	0.44	1.63	1.06	1.48	2.67	0.31	2.37	0.13	0.06
1/2	2	RSCS0102	0.59	0.81	0.63	0.5	0.5	1.81	1.18	1.66	3.03	0.38	2.69	0.13	0.06
5/8	3-1/4	RSCS0508	1.25	1.06	0.75	0.63	0.63	2.32	1.5	2.04	3.76	0.44	3.34	0.13	0.06
3/4	4-3/4	RSCS0304	2.63	1.25	0.88	0.81	0.75	2.75	1.81	2.4	4.53	0.5	3.97	0.25	0.06
7/8	6-1/2	RSCS0708	3.16	1.44	1	0.97	0.88	3.2	2.1	2.86	5.33	0.5	4.5	0.25	0.06
1	8-1/2	RSCS1000	4.75	1.69	1.13	1	1	3.69	2.38	3.24	5.94	0.56	5.13	0.25	0.06
1-1/8	9-1/2	RSCS1108	6.75	1.81	1.25	1.25	1.13	4.07	2.69	3.61	6.78	0.63	5.71	0.25	0.06
1/1/4	12	RSCS1104	9.06	2.03	1.38	1.38	1.25	4.53	3	3.97	7.5	0.69	6.25	0.25	0.13
1-3/8	13-1/2	RSCS1308	11.63	2.25	1.5	1.5	1.38	5.01	3.31	4.43	8.28	0.75	6.83	0.25	0.13
1-1/2	17	RSCS1102	15.95	2.38	1.63	1.62	1.5	5.38	3.62	4.84	9.05	0.81	7.33	0.25	0.13
1-3/4	25	RSCS1304	26.75	2.88	2	2.12	1.75	6.38	4.19	5.78	10.97	1	9.06	0.25	0.13
2	35	RSCS2000	42.31	3.25	2.25	2.36	2.1	7.25	5	6.77	12.74	1.13	10.35	0.25	0.13
2-1/2	55	RSCS2102	71.75	4.12	2.75	2.63	2.63	9.38	5.68	8.07	14.85	1.38	13	0.25	0.25
