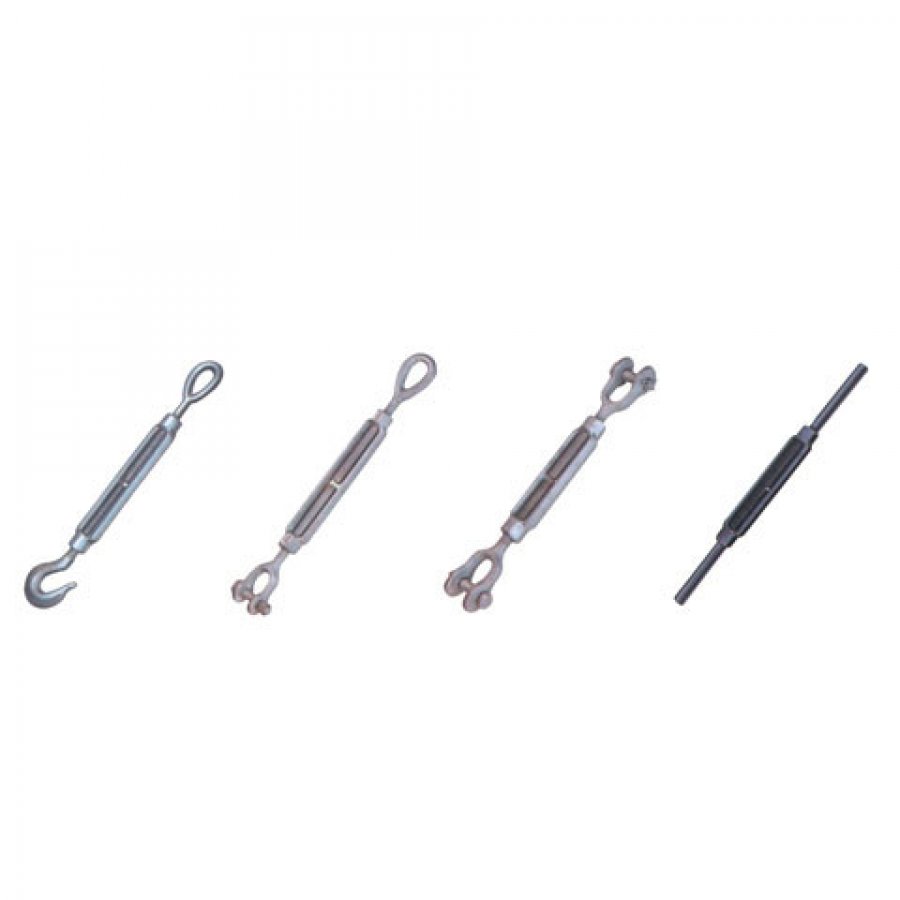

Turbuckles U.S. Type,Drop Forged

I want to inquire

Add to Inquiry Sheet

Products Details

PART. NO.	SIZE(inch)		APPROX WEIGHT EACH(lbs)				W.L.L.(lbs)
	(Dia.×Take-up)	Eyes&/or Hooks	Jaw&Eye	Jaw&Jaw	Stub End	Body only	H&H H&E	E&E J&E J&J STUB END
HUT40104	1/4＂×4＂	0.30	0.30	0.40	0.29	0.17	400	500
HUT40516	5/16＂×4＂-1/2＂	0.50	0.53	0.58	0.46	0.25	700	800
HUT60308	3/8＂×6＂	0.75	0.82	0.93	0.75	0.30	100	1200
HUT60102	1/2＂×6＂	1.50	1.62	1.68	1.36	0.55	1500	2200
HUT90102	1/2＂×9＂	1.75	1.82	1.85	1.69	0.74	1500	2200
HUT20102	1/2＂×12＂	2.18	2.19	2.20	2.00	0.93	1500	2200
HUT60508	5/8＂×6＂	2.63	2.59	2.82	2.15	0.91	2250	3500
HUT90508	5/8＂×9＂	3.00	3.01	3.25	2.70	1.20	2250	3500
HUT20508	5/8＂×12＂	3.25	3.50	3.75	3.22	1.50	2250	3500
HUT60304	3/4＂×6＂	3.75	4.25	4.68	3.25	1.30	3000	5200
HUT90304	3/4＂×9＂	4.50	5.00	5.38	4.00	1.70	3000	5200
HUT20304	3/4＂×12＂	5.75	5.75	6.12	4.65	2.12	3000	5200
HUT80304	3/4＂×18＂	7.00	7.25	7.25	6.12	2.93	3000	5200
HUT60708	7/8＂×6＂	5.85	6.29	6.84	4.75	2.00	4000	7200
HUT20708	7/8＂×12＂	8.38	8.88	9.36	6.67	3.00	4000	7200
HUT80708	7/8＂×18＂	10.25	10.60	11.44	8.75	4.12	4000	7200
HUT61000	1＂×6＂	8.76	9.16	9.51	6.41	2.50	5000	10000
HUT21000	1＂×12＂	11.25	12.00	12.88	8.90	3.86	5000	10000
HUT81000	1＂×18＂	14.00	14.75	16.10	11.70	5.50	5000	10000
HUT41000	1＂×24＂	17.00	17.75	18.60	14.30	7.00	5000	10000
HUT61104	1-1/4＂×6＂	15.45	16.03	16.69	10.40	4.00	6500	15200
HUT21104	1-1/4＂×12＂	19.00	21.20	23.60	14.20	5.93	6500	15200
HUT81104	1-1/4＂×18＂	24.10	26.00	26.60	18.00	8.00	6500	15200
HUT41104	1-1/4＂×24＂	25.00	28.70	31.20	21.80	10.00	6500	15200
HUT61102	1-1/2＂×6＂	---	---	---	15.40	5.80	7500	21400
HUT21102	1-1/2＂×12＂	27.00	31.10	35.50	20.50	8.40	7500	21400
HUT81102	1-1/2＂×18＂	31.20	36.40	40.70	26.20	11.50	7500	21400
HUT41102	1-1/2＂×24＂	38.20	44.20	47.60	31.40	14.10	7500	21400
HUT63304	1-3/4＂×6＂	---	---	---	22.70	8.75	---	28000
HUT81304	1-3/4＂×18＂	45.20	48.80	52.40	---	---	---	28000
HUT41304	1-3/4＂×24＂	58.00	60.00	64.00	43.90	19.50	---	28000
HUT62000	2＂×6＂	---	---	---	31.50	12.50	---	37000
HUT42000	2＂×24＂	90.00	102.00	115.00	60.30	27.50	---	37000
HUT62102	2-1/2＂×6＂	---	---	---	60.80	27.00	---	60000
HUT42102	2-1/2＂×24＂	180.00	183.00	200.00	110.00	54.00	---	60000
HUT42304	2-3/4＂×24＂	210.00	214.00	248.00	---	67.00	---	75000
