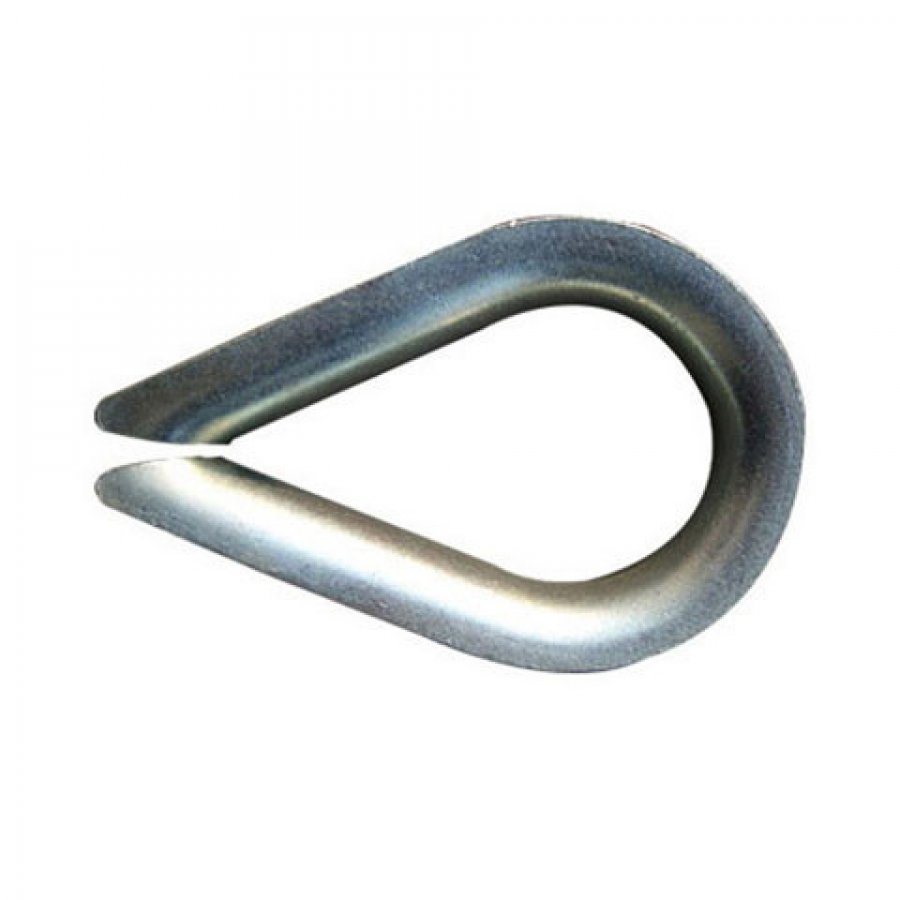

DIN 6899A Thimble

I want to inquire

Add to Inquiry Sheet

Products Details

PART NO.	ROPE DIA. (mm)	DIMENSIONS (mm)							WEIGHT kg/100pcs
PART NO.	ROPE DIA. (mm)	A	B	C	D	E	F	H	WEIGHT kg/100pcs
R6AT0025	2.5	28	21.5	16	10	5	3	1	0.14
R6AT0030	3	30	23.5	17	11	5.5	3.5	1	0.35
R6AT0040	4	34	26.5	19	12	6	4	1	0.42
R6AT0050	5	36	28	20	13	7	5	1	0.80
R6AT0060	6	38	30	22	14	8	6	1	0.85
R6AT0070	7	43	33	24	15	9	7	1.2	1.10
R6AT0080	8	46	35	26	16	10	8	1.2	1.70
R6AT0090	9	50	39	29	18	11	9	1.2	2.10
R6AT0100	10	56	43	32	20	13	10	1.5	3.50
R6AT0110	11	63	47.5	36	22	14	11	1.5	3.70
R6AT0120	12	68	51.5	40	24	15	12	1.5	5.25
R6AT0130	13	75	56.5	44	26	17	13	2	7.25
R6AT0140	14	82	61	48	28	18	14	2	8.33
R6AT0160	16	91	69.5	54	32	21	16.5	2.5	12.30
