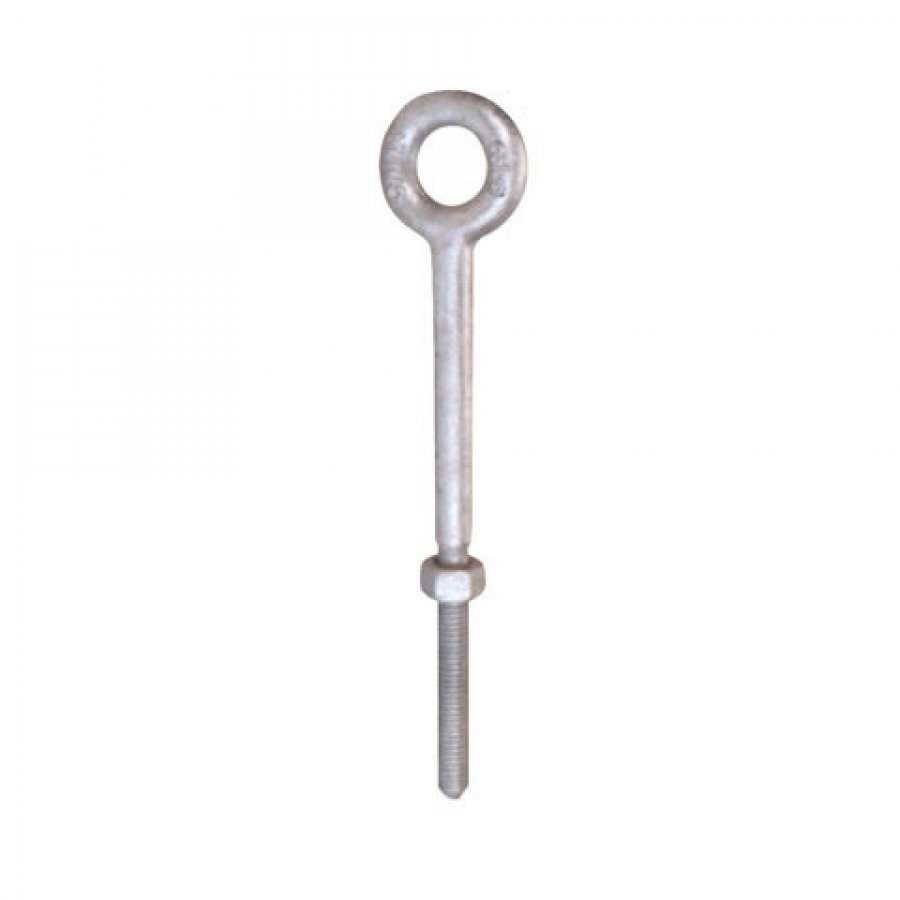

Regular Nut Eye Bolt H.D.G.,Forged Carbon Steel

I want to inquire

Add to Inquiry Sheet

Products Details

PART.NO.	SIZE inch	W.L.L. lbs	THREAD LGENGTH inch	I.D.OF EYE inch	N.W. lbs/100pcs
					N.W. lbs/100pcs
R9E20104	1/4×2	650	1.5	0.50	6.00
R9E40104	1/4×4	650	2.5	0.50	13.50
R9E20516	5/16×2-1/4	1200	1.5	0.62	18.75
R9E40516	5/16×4-1/4	1200	2.5	0.75	25.00
R9E20308	3/8×2-1/2	1550	1.5	0.75	24.33
R9E40308	3/8×4-1/2	1550	2.5	0.75	37.50
R9E60308	3/8×6	1550	2.5	1.00	43.75
R9E30102	1/2×3-1/4	2600	1.5	1.00	50.00
R9E60102	1/2×6	2600	3.0	1.00	62.50
R9E80102	1/2×8	2600	3.0	1.00	75.00
R9E00102	1/2×10	2600	3.0	1.00	88.00
R9E20102	1/2×12	2600	3.0	1.25	100.00
R9E40508	5/8×4	5200	2.0	1.25	101.25
R9E60508	5/8×6	5200	3.0	1.25	120.00
R9E80508	5/8×8	5200	3.0	1.25	131.00
R9E00508	5/8×10	5200	3.0	1.25	162.50
R9E20508	5/8×12	5200	4.0	1.50	175.00
R9E40304	3/4×4-1/2	7200	2.0	1.50	185.90
R9E60304	3/4×6	7200	3.0	1.50	180.00
R9E80304	3/4×8	7200	3.0	1.50	200.00
R9E00304	3/4×10	7200	3.0	1.50	237.50
R9E20304	3/4×12	7200	4.0	1.50	251.94
R9E50304	3/4×15	7200	5.0	1.50	300.00
R9E50708	7/8×5	10600	2.5	1.75	275.00
R9E80708	7/8×8	10600	4.0	1.75	325.00
R9E20708	7/8×12	10600	4.0	1.75	400.00
R9E61000	1×6	13300	3.0	2.00	425.00
R9E91000	1×9	13300	4.0	2.00	452.00
R9E21000	1×12	13300	4.0	2.00	550.00
R9E81000	1×18	13300	7.0	2.00	650.00
R9E81104	1-1/4×8	21000	4.0	2.50	750.00
R9E21104	1-1/4×12	21000	4.0	2.50	900.00
R9E01104	1-1/4×20	21000	6.0	2.50	1150.00
