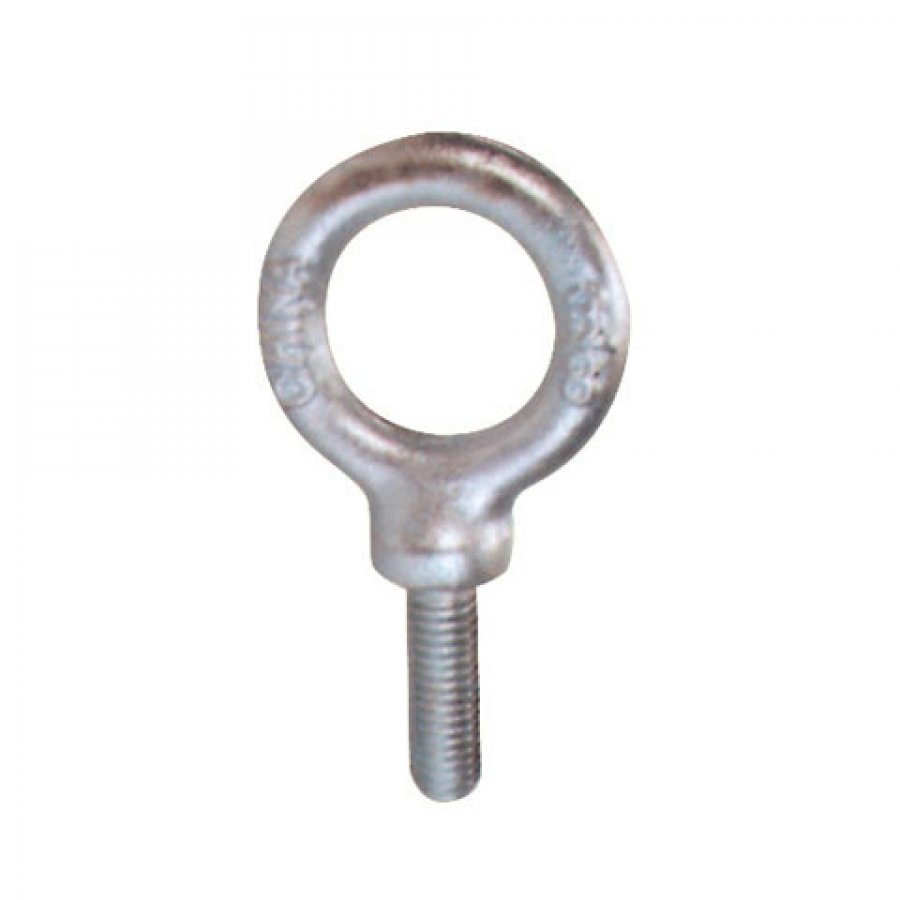

Shoulder Type Nut Eye Bolt H.D.G.,Forged Carbon Steel

I want to inquire

Add to Inquiry Sheet

Products Details

PART.NO.	SIZE inch	W.L.L. lbs	THREAD LGENGTH inch	I.D.OF EYE inch	N.W. lbs/100pcs
					N.W. lbs/100pcs
R7E20104	1/4×2	650	1.5	0.50	6.61
R7E40104	1/4×4	650	2.5	0.50	8.61
R7E20516	5/16×2-1/4	1200	1.5	0.62	12.50
R7E40516	5/16×4-1/4	1200	2.5	0.62	18.75
R7E20308	3/8×2-1/2	1550	1.5	0.75	19.00
R7E40308	3/8×4-1/2	1550	2.5	0.75	31.58
R7E30102	1/2×3-1/4	2600	1.5	1.00	37.50
R7E60102	1/2×6	2600	3.0	1.00	56.25
R7E40508	5/8×4	5200	2.0	1.25	75.00
R7E60508	5/8×6	5200	3.0	1.25	100.25
R7E40304	3/4×4-1/2	7200	2.0	1.50	125.00
R7E60304	3/4×6	7200	3.0	1.50	150.00
R7E50708	7/8×5	10600	2.5	1.75	225.00
R7E61000	1×6	13300	3.0	2.00	375.00
R7E91000	1×9	13300	4.0	2.00	429.00
R7E81104	1-1/4×8	21000	4.0	2.50	650.00
R7E21104	1-1/4×12	21000	4.0	2.50	775.00
R7E51102	1-1/2×15	24000	6.0	3.00	1425.00
