H-331 Forged Carbon Steel.
A-331 Forged Alloy Steel.
Quenched & Tempered.
Ultimate Load is 4 times the Working Load Limit.

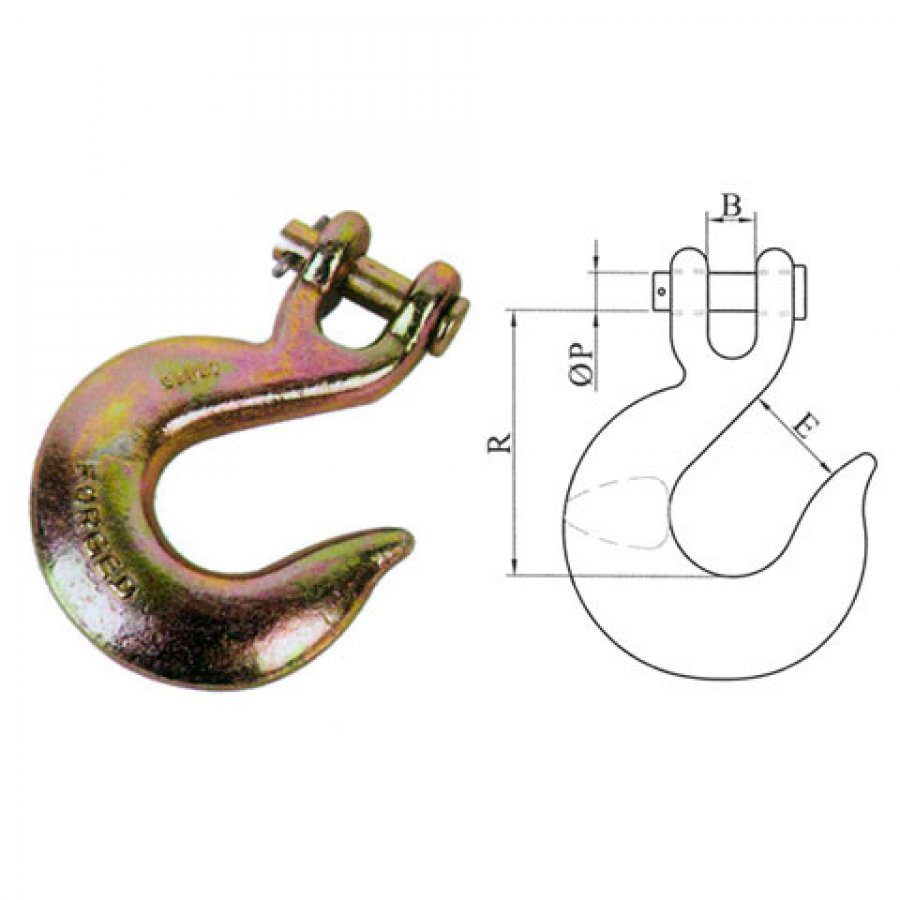

PART. NO. | CHAIN SIZE inch | W.L.L. | DIMENSIONS | N.W. lbs | |||||
lbs | inch | ||||||||
H-331 | A-331 | H-331 | A-331 | B | E | P | R | ||
RCSH0104 | RCSA0104 | 1/4 | 1,950 | 2,750 | 0.44 | 0.94 | 0.38 | 2.56 | 0.53 |
RCSH0516 | RCSA0516 | 5/16 | 2,875 | 4,300 | 0.50 | 1.06 | 0.44 | 2.87 | 0.77 |
RCSH0308 | RCSA0308 | 3/8 | 4,000 | 5,250 | 0.59 | 1.31 | 0.47 | 3.25 | 1.20 |
RCSH0716 | RCSA0716 | 7/16 | 5,000 | 7,000 | 0.66 | 1.56 | 0.56 | 3.70 | 2.06 |
RCSH0102 | RCSA0102 | 1/2 | 6,500 | 9,000 | 0.75 | 1.69 | 0.63 | 4.00 | 2.80 |
RCSH0508 | RCSA0508 | 5/8 | 9,250 | 12,500 | 0.91 | 2.00 | 0.75 | 4.94 | 4.75 |
RCSH0304 | RCSA0304 | 3/4 | 12,500 | 19,250 | 1.31 | 2.50 | 1.00 | 6.09 | 11.15 |
