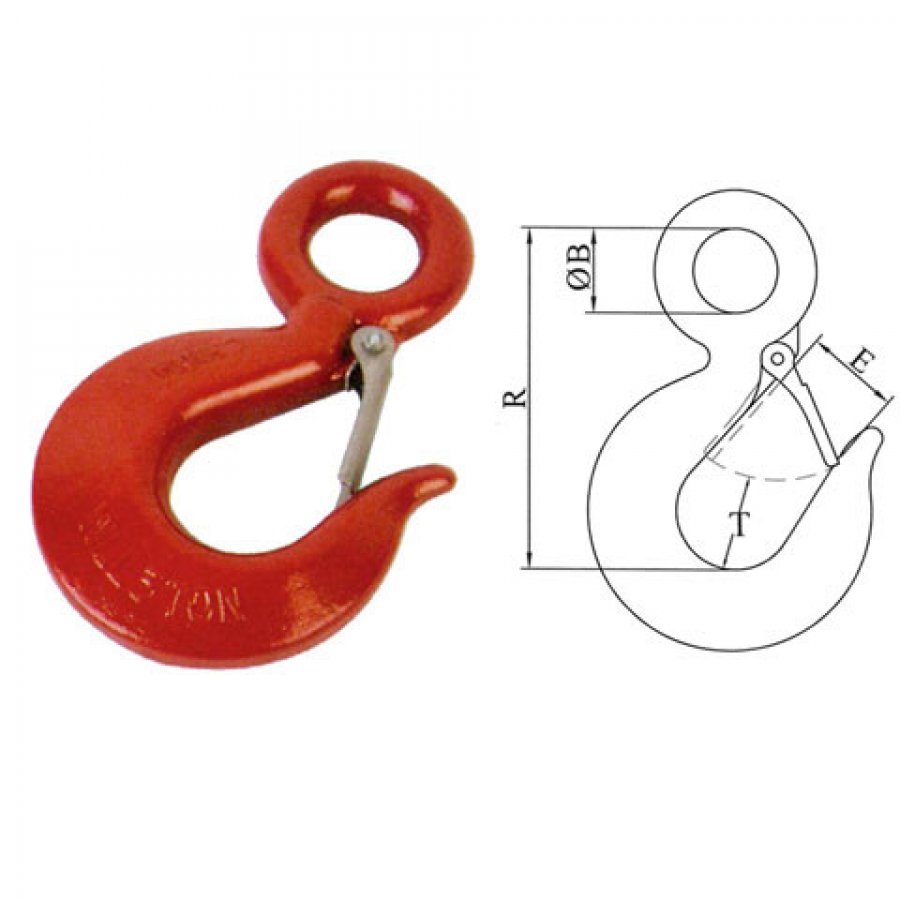

Eye Hoist Hooks With Latches

Forged, Quenched & Tempered.
Proof Load is 2 times the Working Load Limit.
Ultimate Load is 5 times the Working Load Limit.
320C-Carbon Steel; 320A-Alloy Steel.

I want to inquire

Add to Inquiry Sheet

Products Details

PART. NO.		W.L.L.		DIMENSIONS				N.W. lbs
PART. NO.		lbs		inch
320C	320A	320C	320A	B	E	R	T
RHLC0104	RHLA0102	1/4	1/2	0.39	0.40	1.78	0.49	0.16
RHLC0102	RHLA0304	1/2	3/4	0.63	0.81	2.80	0.65	0.37
RHLC0304	RHLA1000	3/4	1	0.75	0.88	3.22	0.81	0.57
RHLC1000	RHLA1102	1	1-1/2	0.91	0.97	3.66	0.84	0.77
RHLC1102	RHLA2000	1-1/2	2	1.12	1.00	4.09	0.84	1.28
RHLC2000	RHLA3000	2	3	1.25	1.12	4.69	1.19	1.76
RHLC3000	RHLA5000	3	5	1.56	1.34	5.78	1.38	3.66
RHLC5000	RHLA7000	5	7	2.00	1.69	7.38	1.78	7.19
RHLC7102	RHLAT110	7-1/2	11	2.44	2.06	9.06	2.12	13.17
RHLCT100	RHLAT150	10	15	2.83	2.22	10.09	2.72	22.15
RHLCT150	RHLAT220	15	22	3.50	3.02	12.53	2.83	39.55
