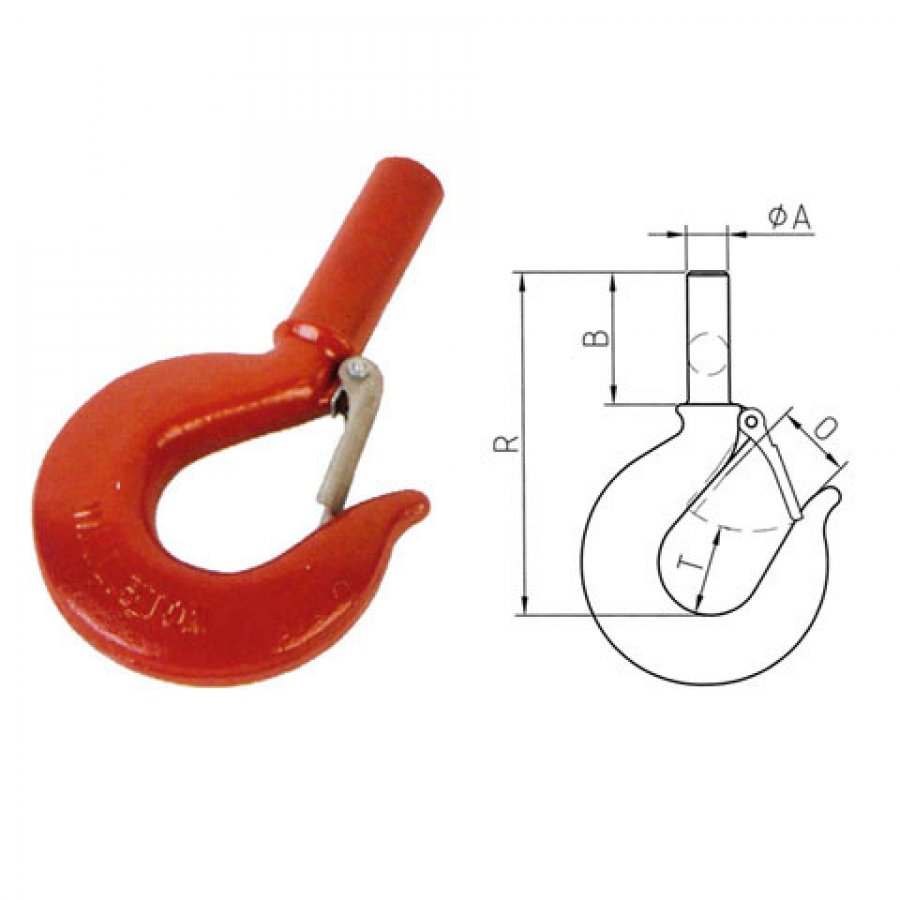

Shank Hooks With Latches

Forged, Quenched & Tempered.
Proof Load is 2 times the Working Load Limit.
Ultimate Load is 5 times the Working Load Limit.
319C-Carbon Steel; 319A-Alloy Steel.

I want to inquire

Add to Inquiry Sheet

Products Details

PART. NO.		W.L.L.		DIMENSIONS					N.W. lbs
PART. NO.		lbs		inch
319C	319A	319C	319A	A	B	O	R	T
RSLC0304	RSLA1000	3/4	1	0.59	2.00	0.88	2.28	0.81	0.52
RSLC1000	RSLA1102	1	1-1/2	0.66	2.25	0.97	2.53	0.81	0.77
RSLC1102	RSLA2000	1-1/2	2	0.72	2.50	1.00	2.69	0.84	1.03
RSLC2000	RSLA3000	2	3	0.88	2.75	1.12	3.06	1.19	1.88
RSLC3000	RSLA5000	3	5	1.16	3.25	1.34	3.78	1.38	3.91
RSLC5000	RSLA7000	5	7	1.41	3.75	1.69	4.75	1.78	7.36
RSLC7102	RSLAT110	7-1/2	11	1.69	4.25	2.06	5.88	2.12	13.17
RSLCT100	RSLAT150	10	15	1.75	4.50	2.28	6.41	2.52	19.55
