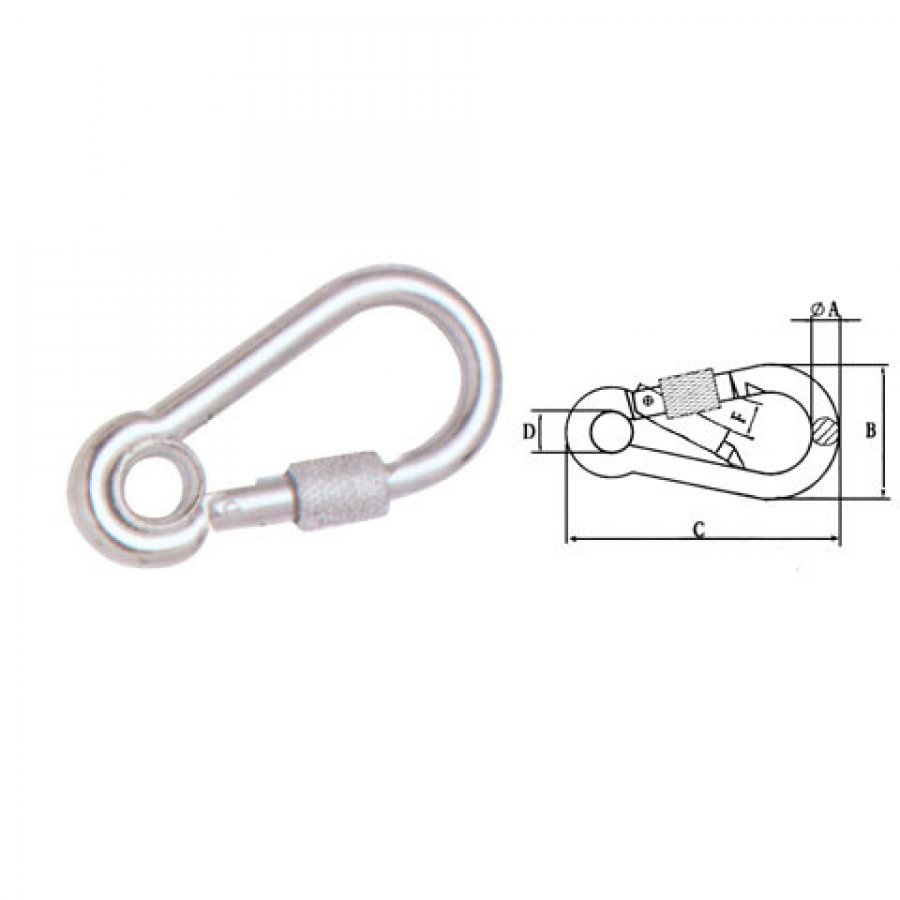

Snap Hook With Eyelet And Screw,Zinc Plated

I want to inquire

Add to Inquiry Sheet

Products Details

PART. NO.	SIZE	A	B	C	D	F	W.L.L.	N.W.
	mm	mm	mm	mm	mm	mm	Ibs	kg/100pcs
RSES0550	5X50	5	25	50	5	7	220	2.1
RSES0660	6X60	6	30	60	5	8	260	3.22
RSES0770	7X70	7	35	70	7	8	400	5.04
RSES0880	8X80	8	40	80	10	9	500	7.7
RSES0990	9X90	9	45	90	12	10	550	9.9
RSES1010	10X100	10	50	100	13	11	770	16.2
RSES1112	11X120	11	57	120	13	16	990	22
RSES1214	12X140	12	67	140	15	19	1200	28
RSES1316	13X160	13	74	160	17	25	1400	37
RSES1418	14X180	14	86	180	17	35	1600	52
