Connecting Links,Italian Type

·Forged Alloy Steel,Quenched & Tempered
·Proof Load is 2 times the Working Load Limit.
·Ultimate Load is 4 times the Working Load Limit.

I want to inquire

Add to Inquiry Sheet

Products Details

PART. NO.	NOMINAL SIZE DIA(mm)	CHAIN SIZE (mm)	DIMENSIONS(mm)				W.L.L. (tons.)	WEIGHT (kgs.)

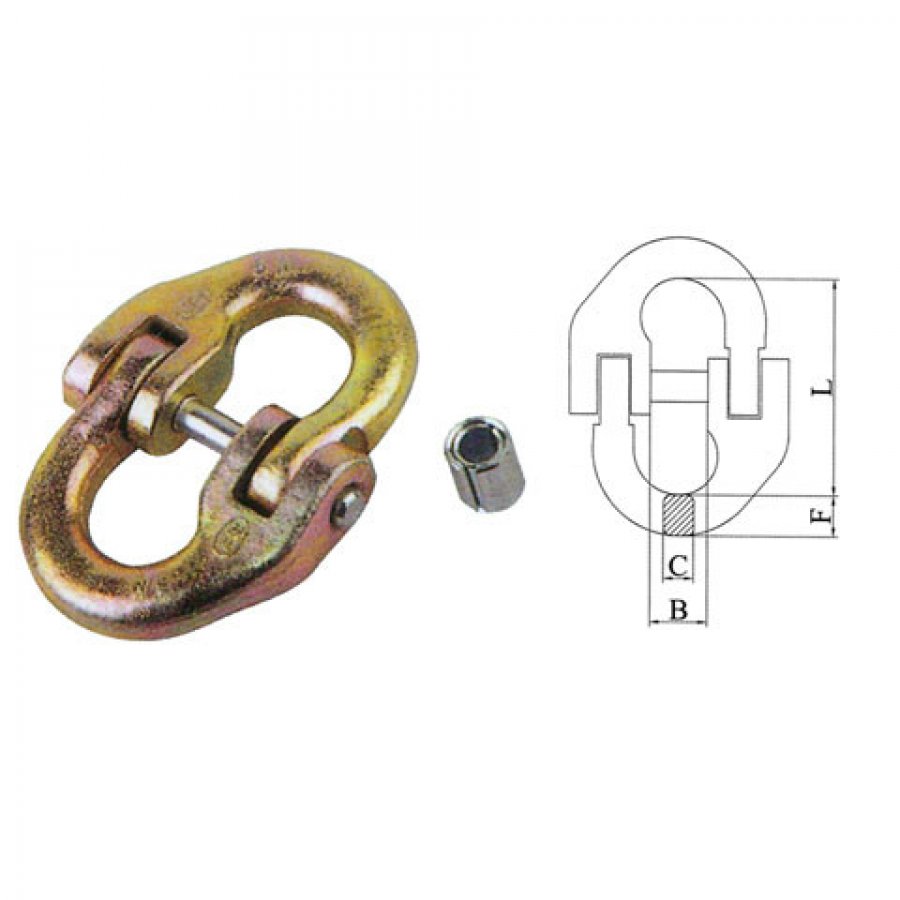

PART. NO.	NOMINAL SIZE DIA(mm)	CHAIN SIZE (mm)	B	C	F	L	W.L.L. (tons.)	WEIGHT (kgs.)
8ICL0050	5	5-8	12.7	6.5	7.0	36.0	0.80	0.05
8ICL0060	6	6-8	16.0	6.8	7.2	43.0	1.10	0.09
8ICL0070	7-8	7/8-8	19.2	9.0	10.0	54.0	2.00	0.18
8ICL0100	10	10-8	25.0	11.0	12.0	77.0	3.15	0.35
8ICL0130	13	13-8	30.0	15.5	15.5	85.0	5.40	0.68
8ICL0160	16	16-8	36.0	18.5	18.5	103.0	8.00	1.19
8ICL0180	18-20	18/20-8	44.0	22.0	22.0	116.0	12.50	1.71
8ICL0220	22	22-8	49.0	26.5	26.5	138.0	15.00	2.71
8ICL0260	26	26-8	60.0	31.5	31.5	146.0	21.20	4.22
8ICL0320	32	32-8	68.9	37.0	37.0	191.0	31.50	8.53
