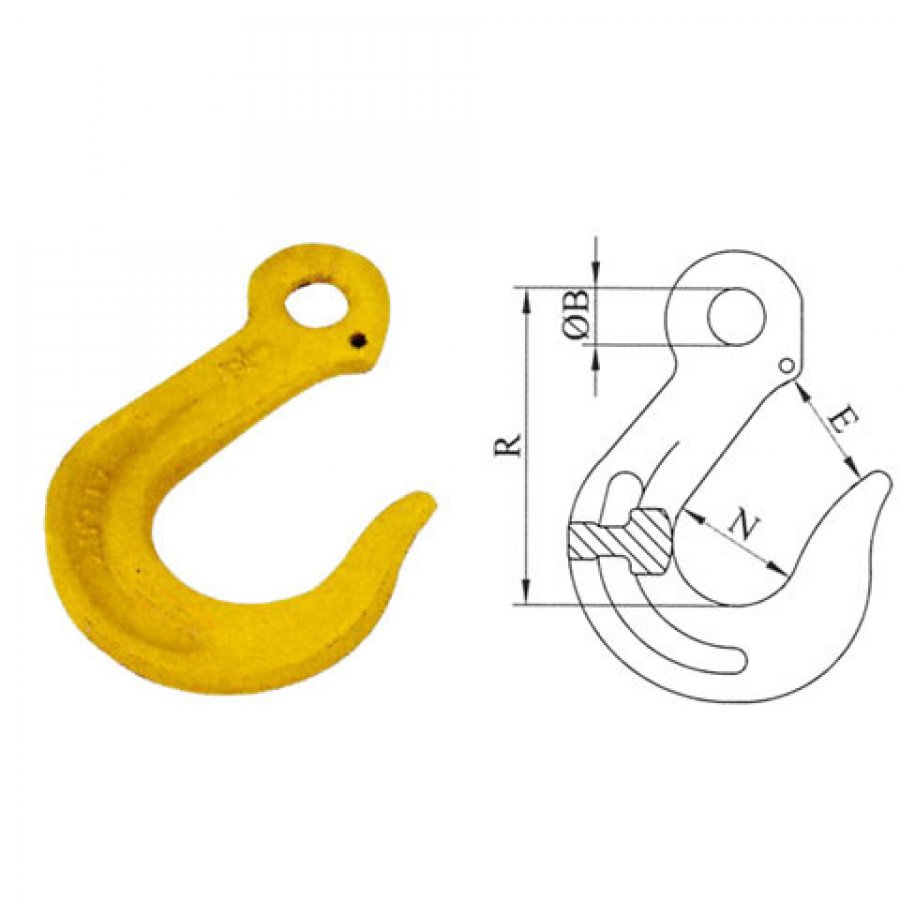

Eye Sling Hooks

·Forged Alloy Steel.
·Quenched & Tempered.
·Proof Load is 2.5 times the Working Load Limit.
·Ultimate Load is 4 times the Working Load Limit.

I want to inquire
Add to Inquiry Sheet

Products Details


                PART. NO.                 SIZE
(inch)		                DIMENSIONS(mm)                W.L.L.
(lbs.)		                WEIGHT
(kgs)
                B                E                N                R
                8ESH0104                 1/4                14.3                36.5                44.4                94.5                3500                0.38
                8ESH0308                 3/8                19.1                45.2                56.8                120.3                7100                0.84
                8ESH0102                 1/2                23.8                54.0                63.6                143.7                12000                1.70
                8ESH0508                 5/8                28.6                59.5                67.0                167.5                18100                3.67
