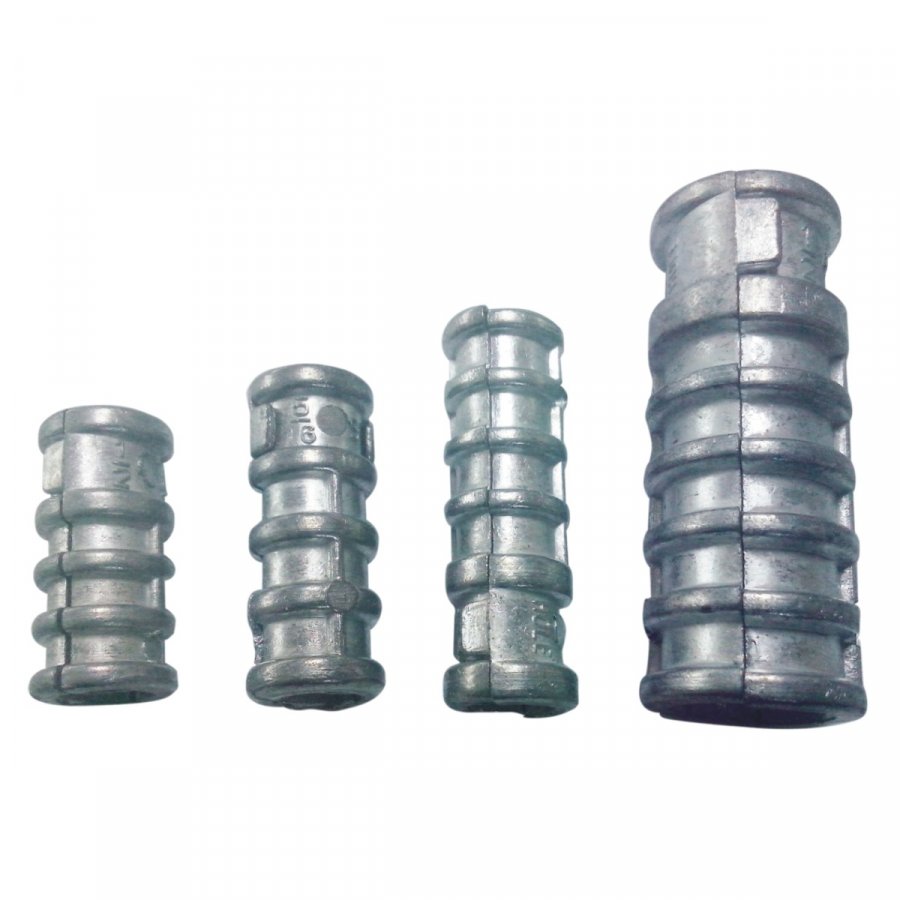

Can be used in all types of masonry from concrete to brick.
Unique four-way expansion assures a tight grip even in out-of round holes.
Short style for hard masonry, long style for soft.
Rust-proof.
The test values listed were obtained using 200~250kgs/cm2 Concrete
(no aggregated).
A safe working load should not exceed 25% of stated value.
Popular size | length | drill dia | kgs/1000pcs | pull out load kgs | qty box/ctn |
1/4S | 1" | 1/2" | 9 | 250 | 200/1800 |
1/4L | 1-1/2" | 1/2" | 13.2 | 310 | 200/1200 |
5/16S | 1-1/4" | 1/2" | 11 | 44 | 200/1800 |
5/16L | 1-3/4" | 1/2" | 16 | 620 | 200/1200 |
3/8S | 1-3/4" | 5/8" | 26.8 | 640 | 100/600 |
3/8L | 1-2/2" | 5/8" | 34.5 | 1100 | 100/600 |
1/2S | 2" | 3/4" | 34.2 | 1240 | 100/600 |
1/2L | 3" | 3/4" | 52.6 | 1670 | 50/300 |
5/8S | 2" | 7/8" | 59 | 1280 | 25/125 |
5/8L | 3-1/2" | 7/8" | 100 | 1730 | 25/125 |
3/4S | 1" | 72.6 | 1640 | 25/125 | |
3/4L | 1" | 111 | 2020 | 25/125 |
