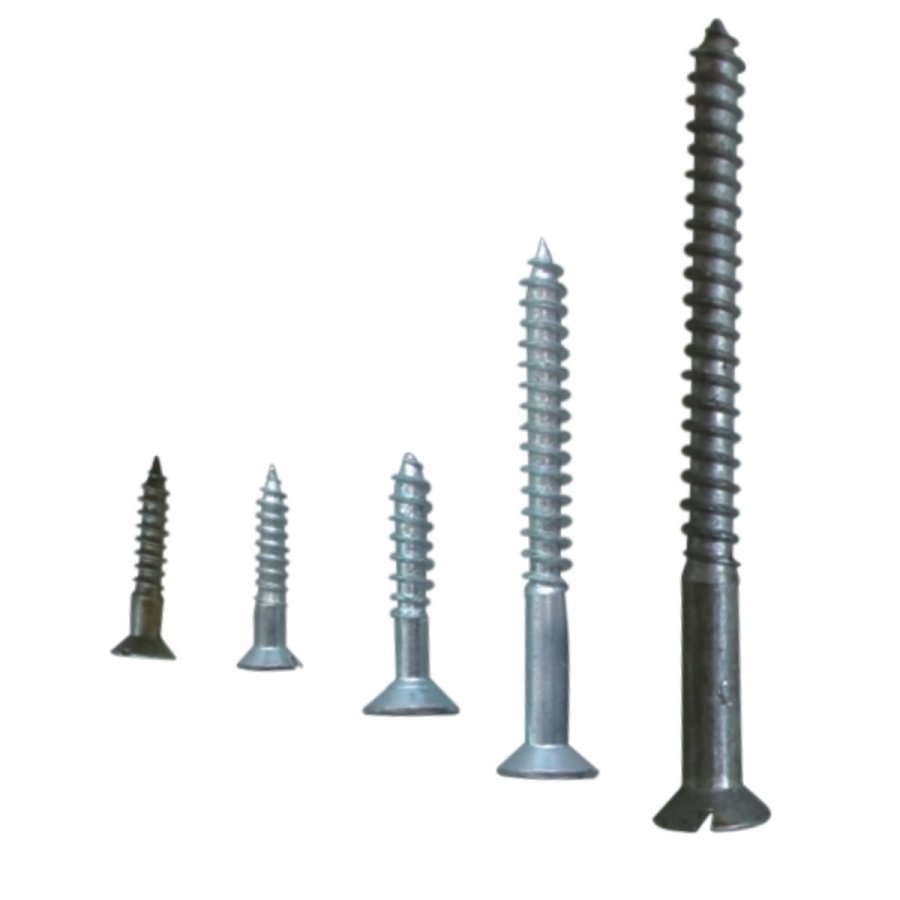

STEEL WOOD SCREWS

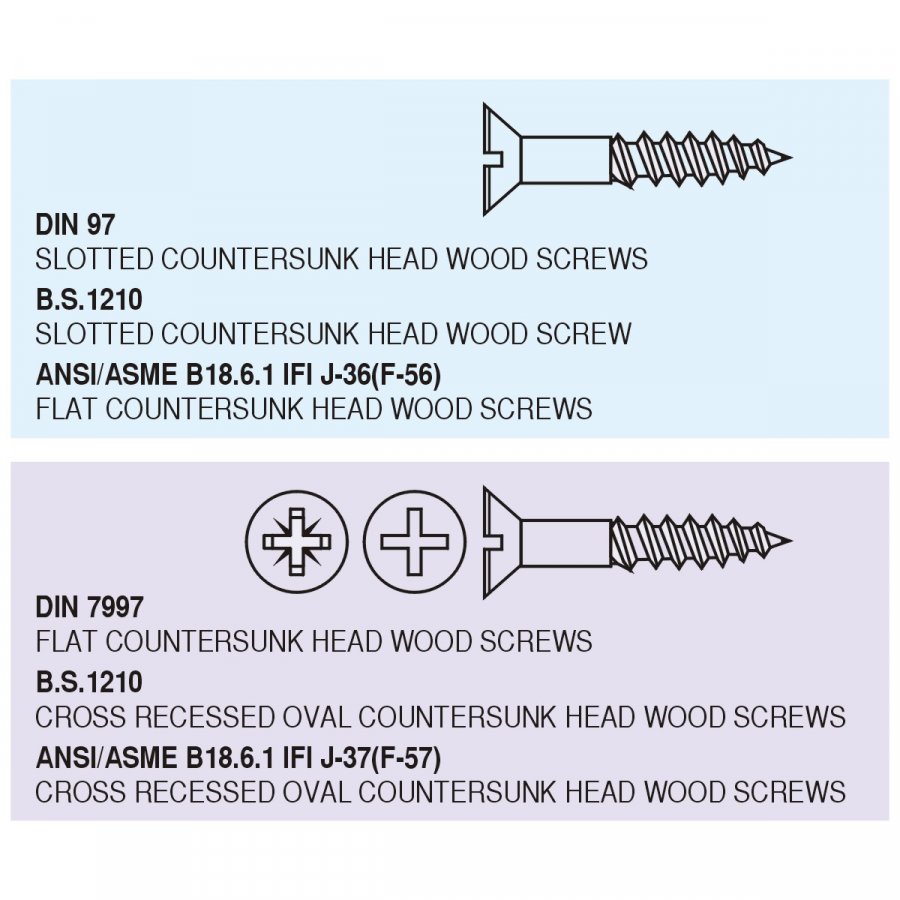

POPULAR SIZE OF FLAT COUNTERSUNK HEAD WOOD SCREWS ANSI/ASME B18.6.1 IFI J-36(F-56)

144PCS/BOX WOOD CASE PACKAGE

SIZE	GRS/CTN	MEAS.	NW./GW.	SIZE	GRS/CTN	MEAS.	NW./GW.
#2x3/8"	200	322015	6/8	#8x1-1/2"	100	322631	45/47
#2x1/2"	200	322015	8/10	#8x1-3/4"	50	322625	26/28
#3x3/8"	200	322015	9/11	#8x2"	50	322625	32/34
#3x1/2"	200	322015	11/13	#8x2-1/4"	50	322631	34/36
#3x5/8"	200	322015	14/16	#8x2-1/2"	50	322631	37/39
#4x3/8"	200	322015	12/14	#8x3"	50	322631	42/44
#4x1/2"	200	322015	14/16	#9x3/4"	100	322617	30/32
#4x5/8"	200	322015	17/19	#9x1"	100	322625	36/38
#4x3/4"	200	322621	22/24	#9x1-1/4"	100	322631	47/49
#4x1"	200	322621	28/30	#9x1-1/2"	50	322625	27/29
#5x1/2"	200	322615	18/20	#9x1-3/4"	50	322625	30/32
#5x5/8"	200	322621	23/25	#9x2"	50	322631	34/36
#5x3/4"	200	322621	25/27	#9x2-1/4	50	322631	38/40
#5x1"	100	322617	17/19	#9x2-1/2"	50	322631	43/45
#5x1/4"	100	322625	21/23	#9x3"	50	322631	50/52
#5x1-1/2"	100	322625	25/27	#10x3/4"	100	322625	39/41
#6x1/2"	200	322625	24/26	#10x1"	100	322625	43/45
#6x5/8"	200	322621	28/30	#10x1-1/4"	50	322625	26/28
#6x3/4"	200	322621	33/35	#10x1-1/2"	50	322625	32/34
#6x7/8"	100	322617	20/22	#10x1-3/4"	50	322625	35/37
#6x1"	100	322617	21/23	#10x2"	50	322633	41/43
#6x1/4"	100	322625	24/26	#10x2-1/4"	50	322631	45/47
#6x1-1/2"	100	322631	31/33	#10x2-1/2"	50	322631	50/52
#6x1-3/4"	100	322631	19/21	#10x3"	25	322631	29/31
#6x2"	50	322625	20/22	#10x3-1/4"	25	322631	34/36
#7x1/2"	200	322621	29/31	#10x4"	25	322631	39/41
#7x5/8"	200	322621	33/35	#12x1"	50	322625	29/31
#7x3/4"	200	322633	39/41	#12x1-1/4"	50	322625	34/36
#7x7/8"	100	322617	23/25	#12x1-1/2"	50	322625	38/40
#7x1"	100	322617	26/28	#12x1-3/4"	50	322631	39/41
#7x1/4"	100	322625	33/35	#12x2"	50	322633	53/55
#7x1-1/2"	100	322631	39/41	#12x2-1/4"	25	322631	29/31
#7x1-3/4"	100	322631	22/24	#12x2-1/2"	25	322633	33/35
#7x2"	50	322625	24/26	#12x3"	25	322631	39/41
#7x2-1/2"	50	322631	27/29	#12x3-1/2"	25	322631	46/48
#8x1/2"	200	322621	33/35	#12x4"	25	322631	51/53
#8x5/8"	200	322621	39/41	#14x2-1/2"	25	322631	42/44
#8x3/4"	200	322633	46/48	#14x3"	25	322631	50/52
#8x7/8"	100	322631	27/29	#14x3-1/2"	25	322631	59/61
#8x1"	100	322625	31/33	#14x4"	25	322631	64/66
#8x1-1/4"	100	322631	39/41
