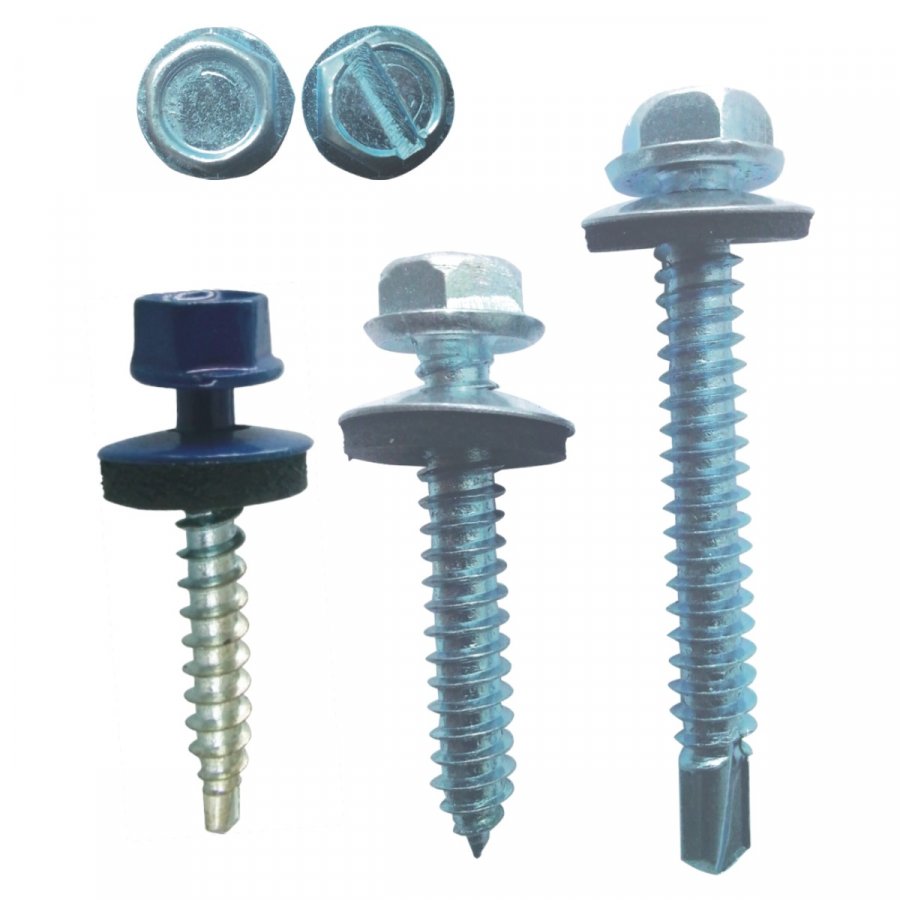

HEX WASHER HEAD SCREWS

HEX WASHER HEAD SCREW WITH NEOPRENE AND METAL WASHER

ANSI STANDARD WITH BONDED WASHERS

size	kg/mpc		size	kg/mpc
#8x1/2	2.4		#12x1-3/8	6.1
#8x3/4	2.8		#12x1-5/8	6.84
#8x1	3.2		#12x1-3/4	7.2
#8x1-1/4	3.6		#12x2	7.86
#8x1-1/2	4		#12x2-1/8	8.26
#10x1/2	3.17		#12x2-1/2	9.24
#10x3/4	3.7		#12x3	10.62
#10x1	4.24		#12x3-1/2	12.13
#10x1-1/4	4.77		#12x4	13.4
#10x1-3/8	5.04		#14x3/4	6.3
#10x1-1/2	5.31		#14x1/2	5.39
#10x2	6.38		#14x1	7.05
#10x2-1/8	6.65		#14x1-1/4	7.98
#10x2-1/4	6.92		#14x1-1/2	8.96
#10x2-1/2	7.45		#14x1-5/8	9.46
#10x3	8.52		#14x2	10.91
#10x4	10.67		#14x2-1/2	12.87
#12x3/4	4.41		#14x3	14.82
#12x1/2	3.72		#14x4	18.73
#12x1	5.1		#14x5	22.65
#12x1-1/4	5.79		#14x6	26.56
#12x1-1/2	6.48

DIN 7504K WITHOUT WASHERS

size	kg/mpc		size	kg/mpc		size	kg/mpc
4.2x13	1.62		4.8X90	8.95		6.3x19	5.58
4.2x16	1.84		4.8X100	9.8		6.3x25	6.5
4.2x19	2.06		5.5x19	3.54		6.3x32	7.58
4.2x22	2.28		5.5x22	3.87		6.3x38	8.5
4.2x25	2.49		5.5x25	4.2		6.3x40	8.81
4.2x32	3		5.5x32	4.97		6.3x45	9.58
4.2x38	3.44		5.5x38	5.63		6.3x50	10.35
4.8x13	2.39		5.5x40	5.85		6.3x60	11.89
4.8x16	2.65		5.5x45	6.4		6.3x70	13.43
4.8x19	2.9		5.5x50	6.95		6.3x80	14.97
4.8x22	3.16		5.5x60	8.06		6.3x90	16.51
4.8x25	3.45		5.5x70	9.15		6.3x100	18.05
4.8x32	4		5.5x80	10.25		6.3x110	19.59
4.8x38	4.52		5.5x90	11.35		6.3x120	21.13
4.8x40	4.7		5.5x100	12.45		6.3x130	22.67
4.8x45	5.11		5.5x110	13.55		6.3x140	24.21
4.8x50	5.55		5.5x120	14.65
4.8X60	6.4		5.5x130	15.75
4.8X70	7.25		5.5x140	16.85
4.8X80	8.1
