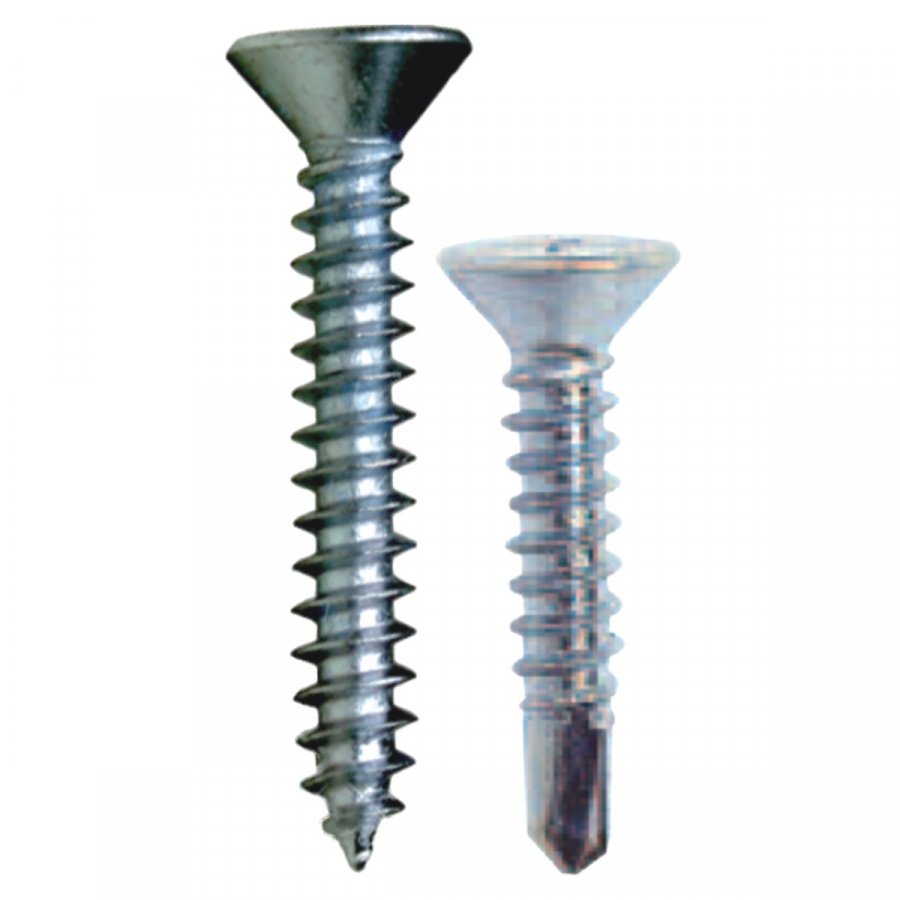

COUNTERSUNK HEAD SCREWS

DIN 7982

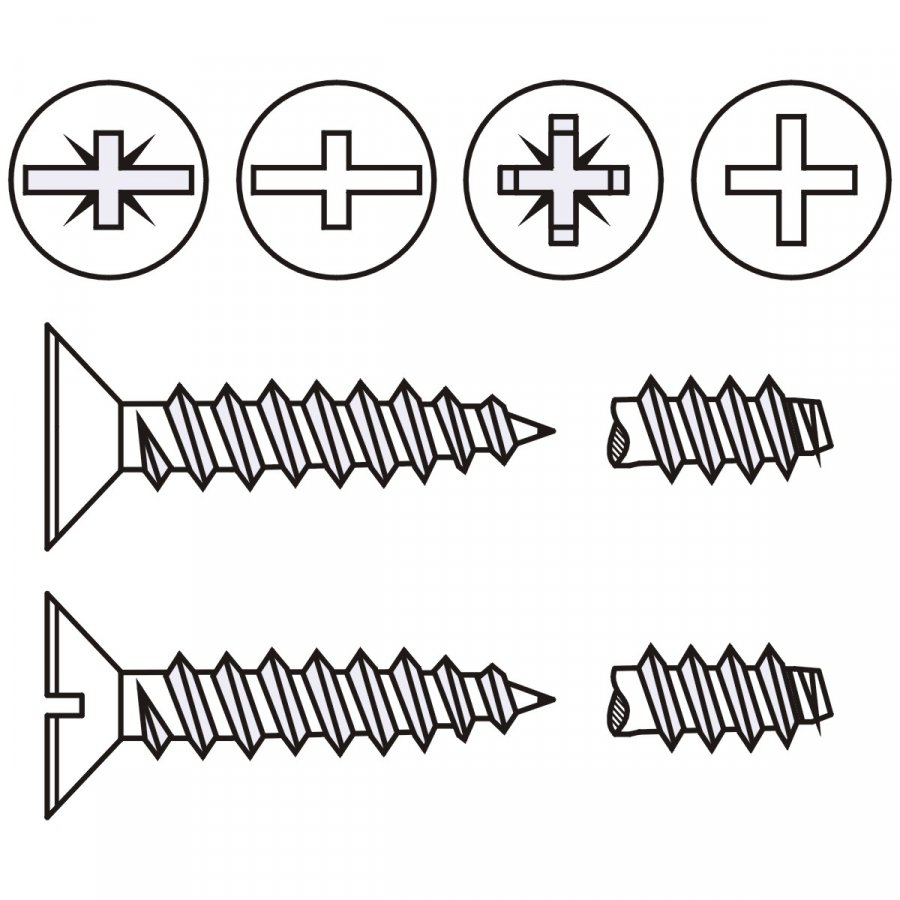

CROSS RECESSED COUNTERSUNK

HEAD TAPPING SCREWS

ANSI/ASME B18.6.4 1981 IFI H-25(E-21)

CROSS RECESSED FLAT

COUNTERSUNK HEAD TAPPING SCREWS

DIN 7972

COUNTERSUNK HEAD TAPPING

SCREWS WITH SLOT

ANSI/ASME B18.6.4 1981 IFI H-24(E-20)

SLOTTED FLAT COUNTERSUNK HEAD

TAPPING SCREWS

I want to inquire

Add to Inquiry Sheet

Products Details

Popular sizes of din7982 ANSI/ASME B18.6.4 1981 IFI H-25(E-21)

	2#-2.2	4#-2.9	6#-3.5	7#-3.9	8#-4.2	10#-4.8	12#-5.5	14#-6.3
1/4--6.5	0.14	0.42
3/8--9.5	0.2	0.52	0.78		1.25
1/2--13	0.27	0.64	0.95	1.2	1.5	2.05
5/8--16	0.34	0.74	1.1	1.38	1.71	2.32	3.11	4.5
3/4--19		0.84	1.25	1.56	1.93	2.58	3.46	5.01
7/8--22		0.95	/	/	2.14	/	3.82	5.51
1--25		1.05	1.55	1.92	2.35	3.12	4.18	6.01
1-1/4--32		1.28	1.98	2.34	2.85	3.74	5.02	7.34
1-1/2--38		1.49	2.21	2.7	3.28	4.28	5.73	8.34
1-3/4--45			2.56	3.12	3.78	4.9	6.57	9.51
2-50			2.81	3.42	4.14	5.35	7.17	10.34
2-1/2--63				4.2	5.06	6.5	8.72	12.51
2-3/4--70				4.62	5.56	/	9.56	13.68
3--75				4.93	5.92	7.57	10.15	14.51
3-1/6--80					6.28	8.02	10.75	15.35
4--100					7.7	/	/	/
--105mm						10.25	13.74	19.52
