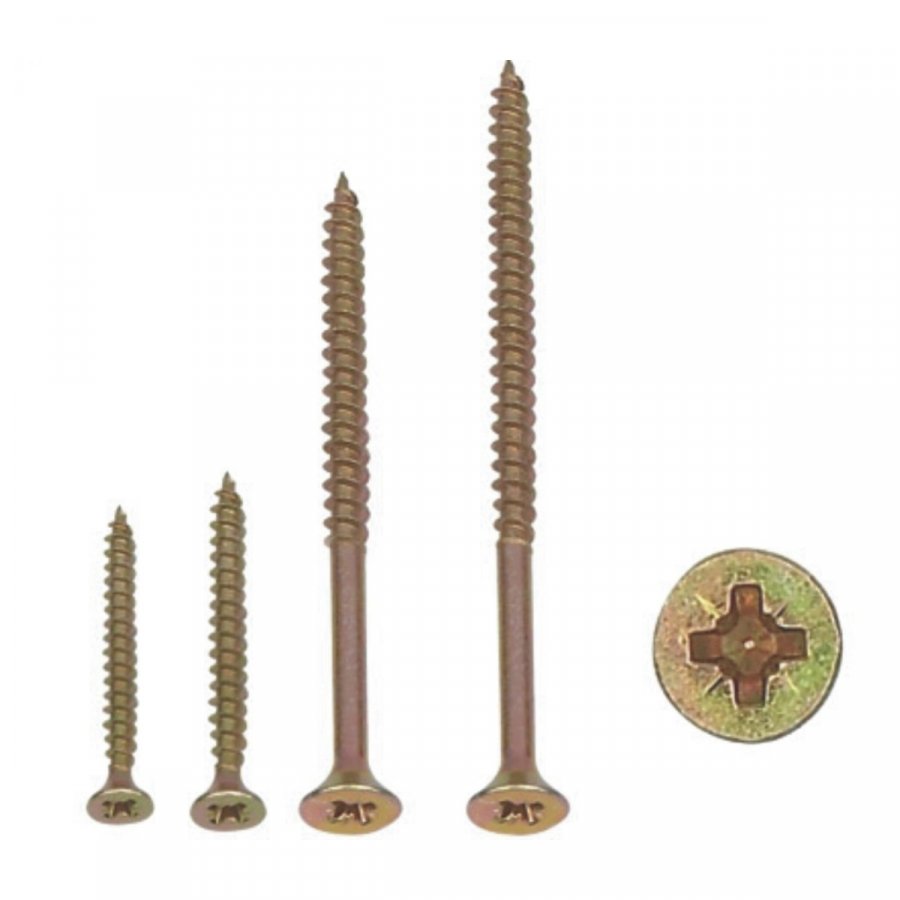

CHIPBOARD SCREW

HEAD STYLES: COUNTERSUNK, PAN, OVAL,TORX CSK HEAD, SINGLE/DOUBLE

HEAD RECESS: POZI ,SQURE, TORX

POINTS: SELF-TAPPING

MATERIAL : C1022A, STAINLESS STEEL AND BRASS MATERIAL AVAILABLE.

SURFACE TREATMENT:

yellow zinc plated

white zine plated

blue zine plated

nickel plated

PACKAGE: IN BULK, IN BOXES,

IN PP BAGS,

IN SMALL PLASTIC BOXES

OR AS PER BUYERS REQUEST

I want to inquire

Add to Inquiry Sheet

Products Details

Popular type : DIN7504

Popular sizes :

size	kg/mpc		size	kg/mpc		size	kg/mpc
3,0x10	0.35		4.0x17	1.04		5.0x25	2.32
3,0x12	0.43		4.0x18	1.08		5.0x30	2.75
3,0x13	0.45		4.0x20	1.17		5.0x35	3.12
3,0x15	0.51		4.0x25	1.4		5.0x40	3.38
3,0x16	0.56		4.0x30	1.62		5.0x45	3.7
3,0x17	0.58		4.0x35	1.87		5.0x50	4.16
3,0x18	0.6		4.0x40	2.08		5.0x55	4.52
3,0x20	0.65		4.0x45	2.33		5.0x60	4.8
3,0x25	0.78		4.0x50	2.6		5.0x70	5.52
3,0x30	0.92		4.0x60	3.12		5.0x80	6.32
3,0x35	1.06		4.0x70	3.44		5.0x90	7
3,0x40	1.21		4.0x80	3.82		5.0x100	7.7
3,0x45	1.32		4.5x12	0.92		5.0x120	9.13
3,0x50	1.5		4.5x13	0.98		6.0x30	4.06
3,5x12	0.54		4.5x15	1.08		6.0x35	4.58
3,5x13	0.62		4.5x16	1.16		6.0x40	4.98
3,5x15	0.68		4.5x17	1.21		6.0x45	5.52
3,5x16	0.72		4.5x18	1.3		6.0x50	6.03
3,5x17	0.76		4.5x20	1.5		6.0x55	6.8
3,5x18	0.8		4.5x25	1.82		6.0x60	7.22
3,5x20	0.87		4.5x30	2.2		6.0x70	8.26
3,5x25	1.02		4.5x35	2.52		6.0x80	9.3
3,5x30	1.21		4.5x40	2.75		6.0x90	10.4
3,5x35	1.38		4.5x45	3.12		6.0x100	11.45
3,5x40	1.58		4.5x50	3.3		6.0x110	12.53
3,5x45	1.82		4.5x60	3.95		6.0x120	13.59
3,5x50	2.02		4.5x70	4.6		6.0x130	15
3,5x55	2.32		4.5x80	5.24		6.0x140	16
4.0x12	0.85		5.0x16	1.56		6.0x150	17
4.0x13	0.88		5.0x17	1.62		6.0x160	18.2
4.0x15	0.95		5.0x18	1.83		6.0x180	20.8
4.0x16	0.98		5.0x20	1.92		6.0x200	23
