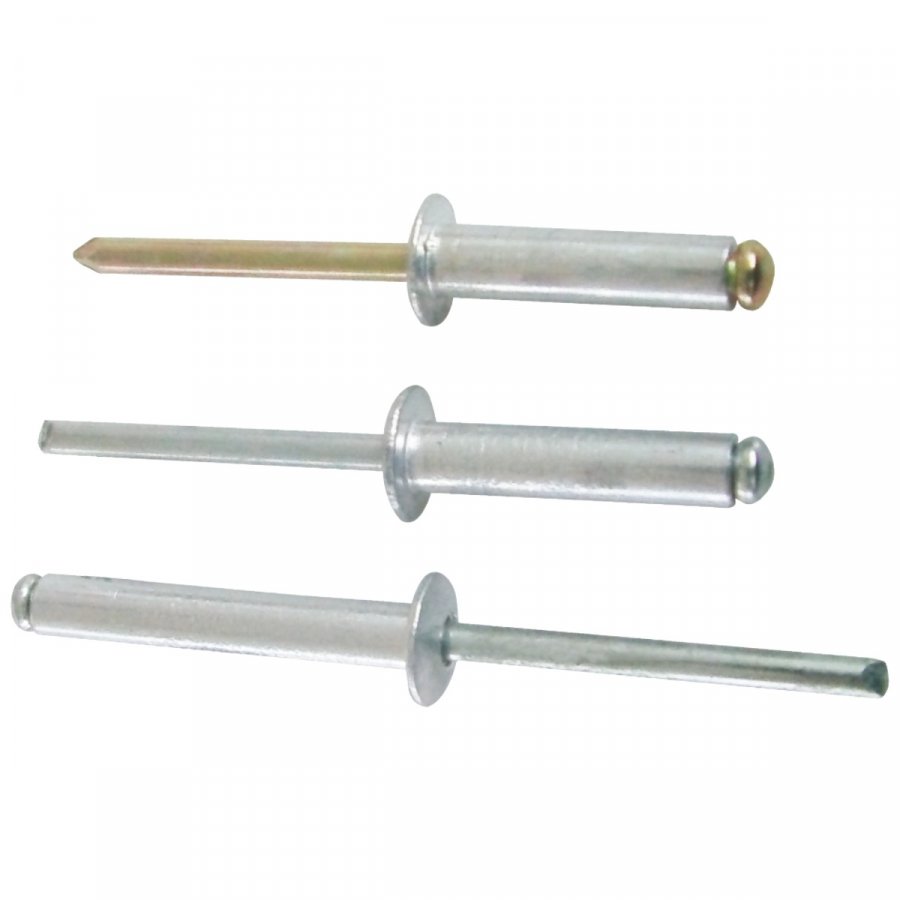

BLIND RIVET

MATERIAL:

Body	Mandrel
Stainless steel Polished	Stainless steel Polished
Steel Zinc Plated	Steel Zinc Plated
Aluminum Alloy Polished 5056 (Al Mg4.5-5.6)	Stainless steel Polished
Aluminum Alloy Polished 5050 (Al Mg1.1-1.8) 5052 (Al Mg2.2-2.8) 5054 (Al Mg3.1-3.9) 5056 (Al Mg4.5-5.6)	Steel Zinc Plated Polished

I want to inquire

Add to Inquiry Sheet

Products Details

Al/Fe Blind rivet Popular sizes :

SIZE(mm)	SIZE(inch)	KG/MPC	PCS/BOX	BOXES/CTN	MEAS
3.2x5.0	1/8x3/16	0.74	0.74	20	47.5x24.5x24
3.2x6.4	1/8x1/4	0.81	0.81	20	47.5x24.5x24
3.2x8.0	1/8x5/16	0.87	0.87	20	47.5x24.5x24
3.2x10	1/8x3/8	0.95	0.95	20	47.5x24.5x24
3.2x11.4	1/8x7/16	0.99	0.99	20	47.5x24.5x24
3.2x12.7	1/8x1/2	1.03	1.03	20	47.5x24.5x24
3.2x16	1/8x5/8	1.13	1.13	10	47.5x24.5x15.5
3.2x19	1/8x3/4	1.23	1.23	10	47.5x24.5x15.5
3.2x25.4	1/8x1	1.46	1.46	20	47.5x24.5x24
4x6.4	5/32x3/16	1.14	1.14	20	47.5x24.5x24
4x8.0	5/32x5/16	1.37	1.37	20	47.5x24.5x24
4x10	5/32x3/8	1.44	1.44	10	47.5x24.5x15.5
4x11.4	5/32x7/16	1.48	1.48	10	47.5x24.5x15.5
4x12.7	5/32x1/2	1.58	1.58	10	47.5x24.5x15.5
4x16	5/32x5/8	1.71	1.71	10	47.5x24.5x15.5
4x19	5/32x3/4	1.85	1.85	10	47.5x24.5x15.5
4x25.4	5/32x1	2.13	2.13	20	47.5x24.5x24
4.8x6.4	3/16x1/4	1.95	1.95	20	47.5x24.5x24
4.8x8.0	3/16x5/16	2.12	2.12	20	47.5x24.5x24
4.8x10	3/16x3/8	2.26	2.26	20	47.5x24.5x24
4.8x12.7	3/16x1/2	2.38	2.38	20	47.5x24.5x24
4.8x16	3/16x5/8	2.66	2.66	20	47.5x24.5x24
4.8x19	3/16x3/4	2.87	2.87	20	47.5x24.5x24
4.8x25.4	3/16x1	3.27	3.27	20	47.5x24.5x24
4.8x30	3/16x1 1/4	3.64	3.64	20	47.5x24.5x24
6.4x10	1/4x3/8	4.61	4.61	20	47.5x24.5x24
6.4x12.7	1/4x1/2	5.17	5.17	20	47.5x24.5x24
6.4x16	1/4x5/8	5.57	5.57	20	47.5x24.5x24
6.4x19	1/4x3/4	5.82	5.82	20	47.5x24.5x24
6.4x25	1/4x1	6.66	6.66	20	47.5x24.5x24
6.4x30	1/4x1 1/4	7.26	7.26	20	47.5x24.5x24
